GWIN Assisted DIY 45,000 BTU 230V King (48K Condenser 7K+7K+7K+24K Wall Mount) Complete System With 15' Line Set Communication Wire and GWIN Assisted DIY Tech

GWIN 45,000 BTU 230V King (7K+7K+7K+24K) Complete System With 15’ Line Set, Communication Wire & GWIN Tech

Bring efficient multi-room comfort home with this GWIN 230V four-zone complete system. This package pairs a 48,000 BTU outdoor condenser with four wall-mount indoor air handlers, making it ideal for four separate areas that need individualized comfort control. This combination is perfect if you have rooms that are each approximately 475 sq ft.

Designed for flexibility and confidence, this bundle includes 4 15-foot line sets, 4 15-foot communication wires, 4 remote controls, and 1x GWIN Tech to commission your system.

The GWIN 45,000 BTU King (7K+7K+7K+24K) Complete System is a four-zone 230V ductless solution built around a 48,000 BTU outdoor heat pump and matched 7k+7k+7k+24k wall-mount indoor units. With included 15’ line sets, communication wire, remotes, Wi-Fi-ready indoor units, and 1x GWIN Tech included for commissioning, this package delivers an Assisted DIY Installation advantage with expert support from day one.

Assisted DIY Installation Advantage

GWIN is built for homeowners and installers who want the freedom of a full Assisted DIY install with full warranty while still having expert support available from day one. This system is positioned as the first Assisted DIY system to come with a tech, giving buyers added confidence during installation and startup.

• Professional commercial grade compressors and control boards
• Flareless brassless connection approach

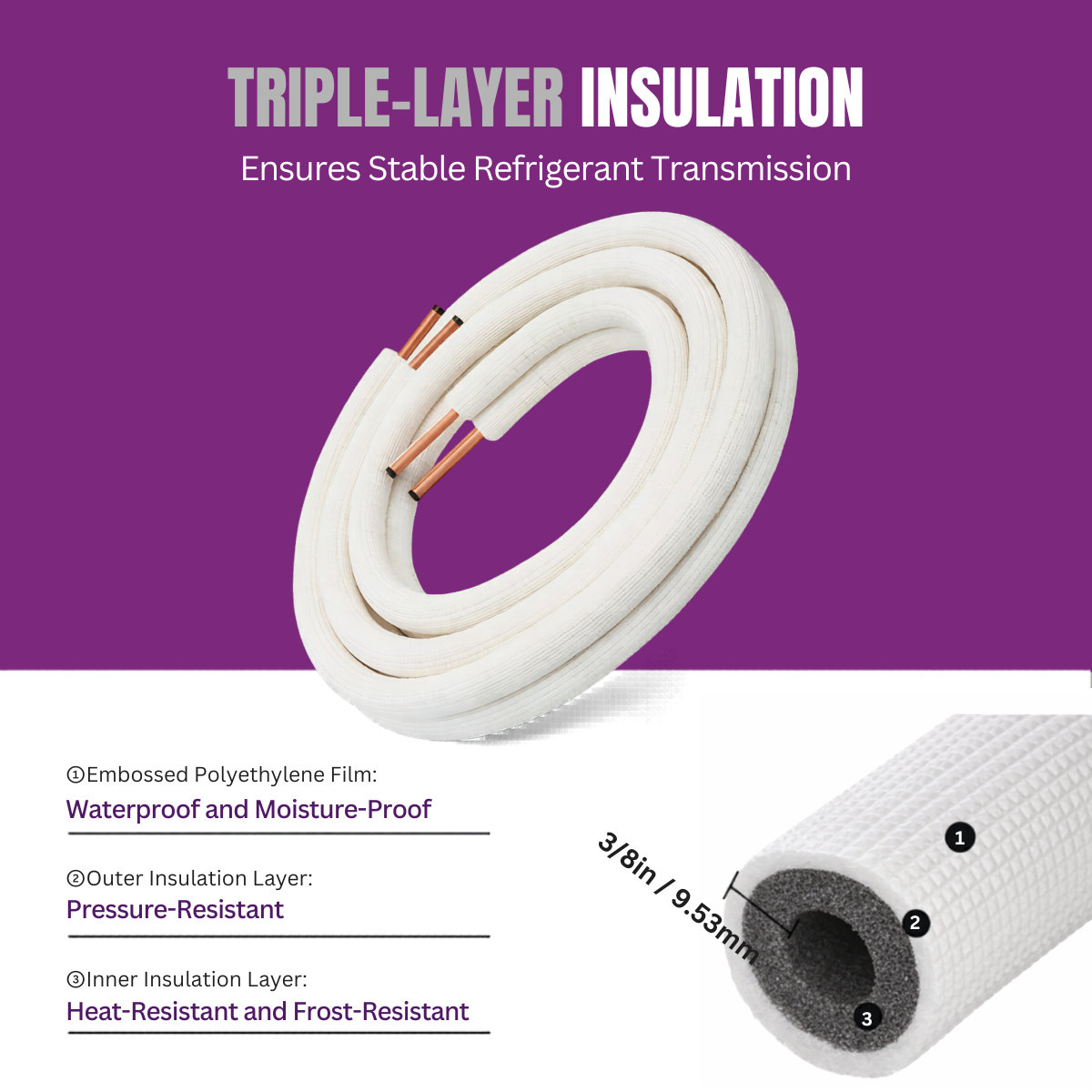

• Cut-to-length line set installation flexibility
• Comes with GWIN Tech included — described as the first system to ever come with a tech, only to commission system
• No worries in your install with a GWIN Tech included
• Full Assisted DIY install with full warranty

BTU - Square Feet

• 7,000 BTU Wall Mount Air Handler - capable of cooling and heating 300 sq ft
• 7,000 BTU Wall Mount Air Handler - capable of cooling and heating 300 sq ft
• 7,000 BTU Wall Mount Air Handler - capable of cooling and heating 300 sq ft
• 24,000 BTU Wall Mount Air Handler - capable of cooling and heating 1,000 sq ft
• Total Coverage: 1,900 sq ft

What Is Included

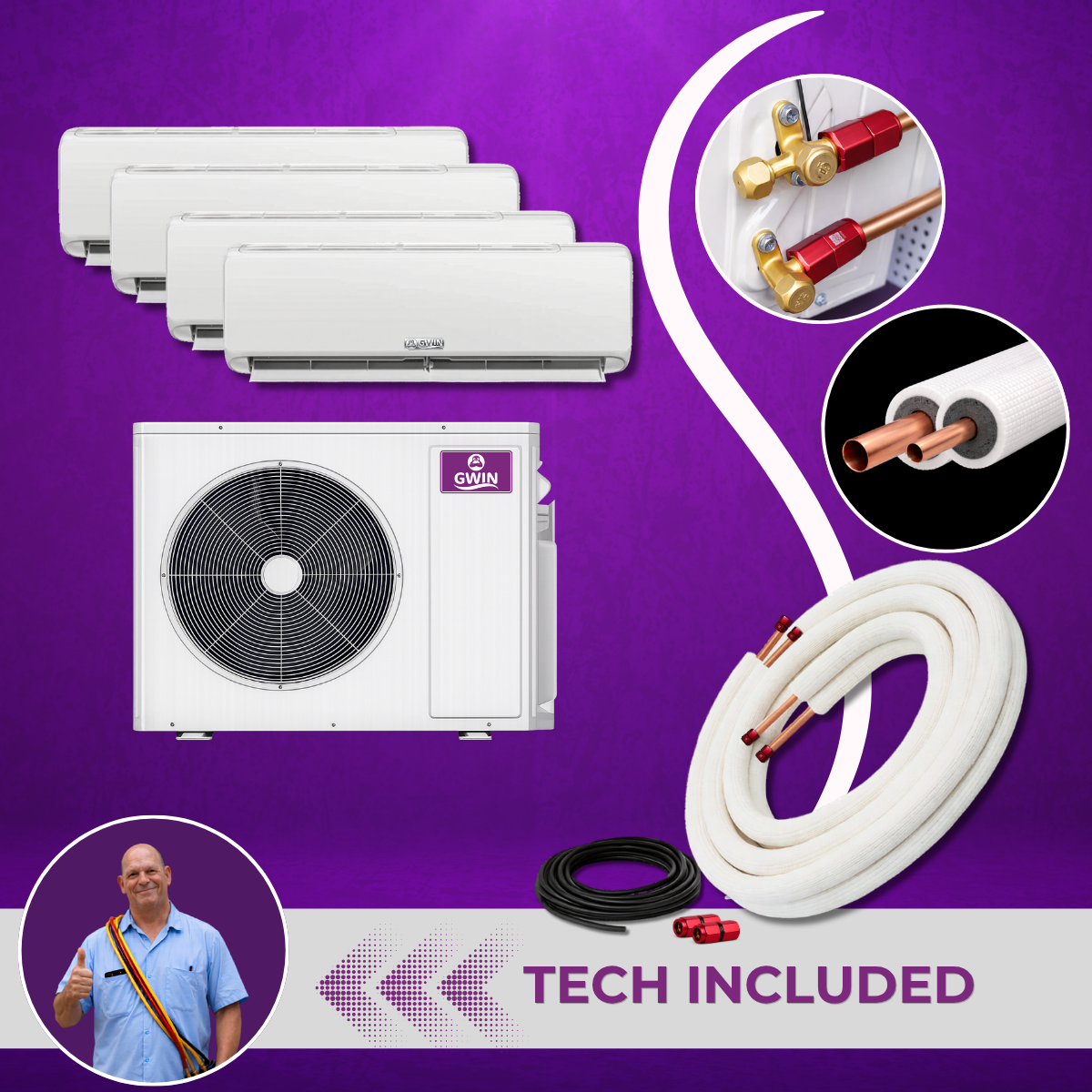

• 1x GWIN Tech
• 3x GWIN 7,000 BTU King wall-mount indoor air handlers
• 1x GWIN 24,000 BTU King wall-mount indoor air handler
• 1x Outdoor condenser (48,000 BTU)

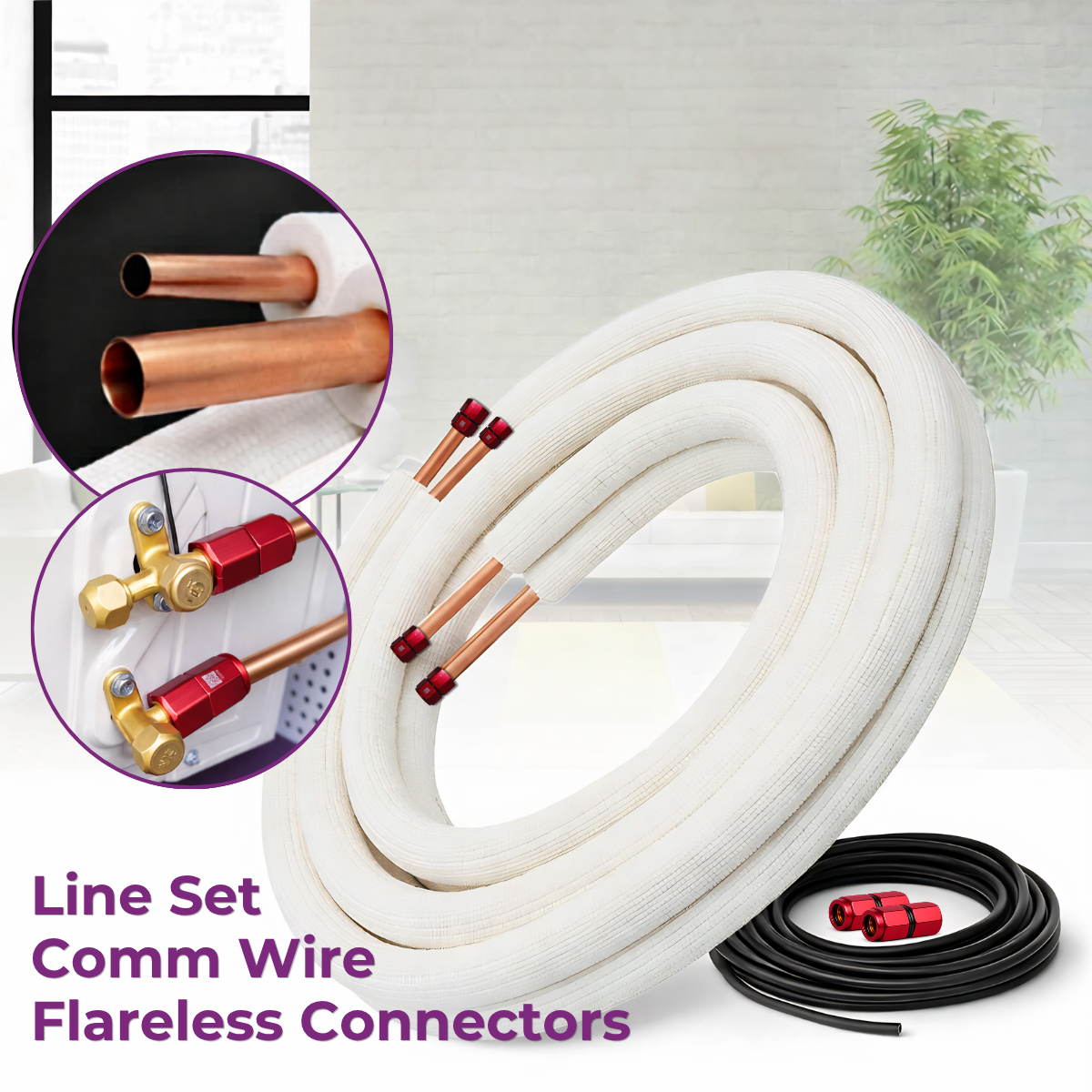

• 4x 15 foot line sets
• 4x Communication wires
• 4x Remote controls

Why Buyers Like This Bundle

• Four-zone comfort with separate indoor units for better room-to-room control
• Outdoor condenser supports 4 zones
• Wi-Fi included on all indoor units
• 7 indoor fan speeds on each wall-mount unit
• Low ambient operation down to -22°F on the outdoor unit for both cooling and heating ranges
• Base pan heater, intelligent defrosting, intelligent preheating, and low voltage startup built into the outdoor unit
• Balanced capacity sizing for even comfort across all rooms

Indoor Unit Specifications – 7,000 BTU King Wall Mount (Unit 1)

Indoor Model	LIV07HP230V1R32AH
System Type	Heat Pump
Cooling Capacity (Nominal)	7,000 Btu/h
Heating Capacity (Nominal)	8,000 Btu/h
Refrigerant Type	R32
Air Flow (Min - Max)	135 - 259 CFM
Sound Pressure Level (Min - Max)	23 - 38 dB(A)
Dehumidification	1.27 pt/hr
External Dimensions (W x H x D)	27-7/8 x 10-15/64 x 7-18/64 in
Package Dimensions (W x H x D)	29-41/64 x 13-5/64 x 10-10/64 in
Net Weight	15.4 lbs
Gross Weight	18.7 lbs
Line Set Size (Liquid - Gas)	1/4 - 3/8 in
Power Supply	208-230V / 1Ph / 60Hz (Powered by the Outdoor Unit)

7,000 BTU Indoor Features & Functions (Unit 1)

• Wired controller interface: Yes
• WiFi included: Yes
• Indoor fan type: Crossflow
• Multi fan speeds: 7 Speeds
• Indoor unit display: Yes
• Auxiliary electrical heater: No
• Ventilation (Outdoor Air): No
• Remote control functions: Auto Mode, Auto Fan, Horizontal Auto Swing, Vertical Auto Swing, Clock, Dry Mode, Dry Anti-Mildew (X-Fan), Energy Saving, I Feel, Lock, Quiet Mode, Room Temperature Display, Sleep Mode, Timer Mode, Turbo Mode, Display On/Off Control, Freeze Guard Mode (46°F)

Indoor Unit Specifications – 7,000 BTU King Wall Mount (Unit 2)

Indoor Model	LIV07HP230V1R32AH
System Type	Heat Pump
Cooling Capacity (Nominal)	7,000 Btu/h
Heating Capacity (Nominal)	8,000 Btu/h
Refrigerant Type	R32
Air Flow (Min - Max)	135 - 259 CFM
Sound Pressure Level (Min - Max)	23 - 38 dB(A)
Dehumidification	1.27 pt/hr
External Dimensions (W x H x D)	27-7/8 x 10-15/64 x 7-18/64 in
Package Dimensions (W x H x D)	29-41/64 x 13-5/64 x 10-10/64 in
Net Weight	15.4 lbs
Gross Weight	18.7 lbs
Line Set Size (Liquid - Gas)	1/4 - 3/8 in
Power Supply	208-230V / 1Ph / 60Hz (Powered by the Outdoor Unit)

7,000 BTU Indoor Features & Functions (Unit 2)

• Wired controller interface: Yes
• WiFi included: Yes
• Indoor fan type: Crossflow
• Multi fan speeds: 7 Speeds
• Indoor unit display: Yes
• Auxiliary electrical heater: No
• Ventilation (Outdoor Air): No
• Remote control functions: Auto Mode, Auto Fan, Horizontal Auto Swing, Vertical Auto Swing, Clock, Dry Mode, Dry Anti-Mildew (X-Fan), Energy Saving, I Feel, Lock, Quiet Mode, Room Temperature Display, Sleep Mode, Timer Mode, Turbo Mode, Display On/Off Control, Freeze Guard Mode (46°F)

Indoor Unit Specifications – 7,000 BTU King Wall Mount (Unit 3)

Indoor Model	LIV07HP230V1R32AH
System Type	Heat Pump
Cooling Capacity (Nominal)	7,000 Btu/h
Heating Capacity (Nominal)	8,000 Btu/h
Refrigerant Type	R32
Air Flow (Min - Max)	135 - 259 CFM
Sound Pressure Level (Min - Max)	23 - 38 dB(A)
Dehumidification	1.27 pt/hr
External Dimensions (W x H x D)	27-7/8 x 10-15/64 x 7-18/64 in
Package Dimensions (W x H x D)	29-41/64 x 13-5/64 x 10-10/64 in
Net Weight	15.4 lbs
Gross Weight	18.7 lbs
Line Set Size (Liquid - Gas)	1/4 - 3/8 in
Power Supply	208-230V / 1Ph / 60Hz (Powered by the Outdoor Unit)

7,000 BTU Indoor Features & Functions (Unit 3)

• Wired controller interface: Yes
• WiFi included: Yes
• Indoor fan type: Crossflow
• Multi fan speeds: 7 Speeds
• Indoor unit display: Yes
• Auxiliary electrical heater: No
• Ventilation (Outdoor Air): No
• Remote control functions: Auto Mode, Auto Fan, Horizontal Auto Swing, Vertical Auto Swing, Clock, Dry Mode, Dry Anti-Mildew (X-Fan), Energy Saving, I Feel, Lock, Quiet Mode, Room Temperature Display, Sleep Mode, Timer Mode, Turbo Mode, Display On/Off Control, Freeze Guard Mode (46°F)

Indoor Unit Specifications – 24,000 BTU King Wall Mount (Unit 4)

Indoor Model	KING24HP230V1R32AH
System Type	Heat Pump
Cooling Capacity (Nominal)	24,000 Btu/h
Heating Capacity (Nominal)	24,000 Btu/h
Refrigerant Type	R32
Air Flow (Min - Max)	412 - 677 CFM
Sound Pressure Level (Min - Max)	36 - 51 dB(A)
Dehumidification	5.28 pt/hr
External Dimensions (W x H x D)	42-7/16 x 13-7/64 x 9-11/16 in
Package Dimensions (W x H x D)	44-39/64 x 16-19/64 x 13-7/64 in
Net Weight	33.1 lbs
Gross Weight	39.7 lbs
Line Set Size (Liquid - Gas)	1/4 - 1/2 in
Power Supply	208-230V / 1Ph / 60Hz (Powered by the Outdoor Unit)

24,000 BTU Indoor Features & Functions (Unit 4)

• Wired controller interface: Yes
• WiFi included: Yes
• Indoor fan type: Crossflow
• Multi fan speeds: 7 Speeds
• Indoor unit display: Yes
• Auxiliary electrical heater: No
• Ventilation (Outdoor Air): No
• Remote control functions: Auto Mode, Auto Fan, Horizontal Auto Swing, Vertical Auto Swing, Clock, Dry Mode, Dry Anti-Mildew (X-Fan), Energy Saving, I Feel, Lock, Quiet Mode, Room Temperature Display, Sleep Mode, Timer Mode, Turbo Mode, Display On/Off Control, Freeze Guard Mode (46°F)

Outdoor Condenser Specifications

System Performance (Non-Ducted Indoor Units)

Outdoor Model	GMUL48HP230V1R32AO
Number of Zones	5
Cooling Capacity (Min - Max)	8,870 - 49,133 Btu/h
Cooling Rated Capacity @95°F	48,000 Btu/h
Heating Capacity (Min - Max)	8,870 - 54,592 Btu/h
Heating Rated Capacity @47°F	48,000 Btu/h
Heating Rated Capacity @17°F	40,000 Btu/h
Heating Rated Capacity @5°F	37,800 Btu/h
SEER2	21
EER2	12.0
HSPF2	10.0
COP @5°F	2.10

System Performance (Ducted Indoor Units)

Cooling Capacity (Min - Max)	8,870 - 49,133 Btu/h
Cooling Rated Capacity @95°F	48,000 Btu/h
Heating Capacity (Min - Max)	8,870 - 54,592 Btu/h
Heating Rated Capacity @47°F	48,000 Btu/h
Heating Rated Capacity @17°F	40,000 Btu/h
Heating Rated Capacity @5°F	36,000 Btu/h
SEER2	18.0
EER2	11.7
HSPF2	8.1
COP @5°F	1.90

System Performance (Mixed Ducted and Non-Ducted Indoor Units)

Cooling Capacity (Min - Max)	8,870 - 49,133 Btu/h
Cooling Rated Capacity @95°F	48,000 Btu/h
Heating Capacity (Min - Max)	8,870 - 54,592 Btu/h
Heating Rated Capacity @47°F	48,000 Btu/h
Heating Rated Capacity @17°F	40,000 Btu/h
Heating Rated Capacity @5°F	37,000 Btu/h
SEER2	19.0
EER2	11.8
HSPF2	9.0
COP @5°F	1.84

Outdoor Unit

System Type	Heat Pump
Cooling Temperature Range	-22 to 118°F
Heating Temperature Range	-22 to 75°F
Refrigerant Type	R32
Compressor Type	Double Cylinder / 1-Stage Inverter
Sound Pressure Level	59 dB(A)
External Dimensions (W x H x D)	40-10/64 × 32-33/64 × 16-52/64 in
Package Dimensions (W x H x D)	43-1/32 × 34-27/32 × 19-9/16 in
Net Weight	174.2 lbs
Gross Weight	189.6 lbs

Refrigerant Piping

Refrigerant Charge - R32	95.256 oz
Additional Charge	0.2 oz/ft
Port A (Liquid - Gas)	1/4 - 3/8 in
Port B (Liquid - Gas)	1/4 - 3/8 in
Port C (Liquid - Gas)	1/4 - 3/8 in
Port D (Liquid - Gas)	1/4 - 3/8 in
Port E (Liquid - Gas)	1/4 - 3/8 in
Pre-Charge Length	164 ft
Pipe Length (Min - Max)	10 - 328 ft
Pipe Length to Furthest Indoor Unit	82 ft
Max Pipe Elevation	82 ft

Electrical

Power Supply	208-230V / 1Ph / 60Hz
Voltage Range (Min - Max)	187 - 253 VAC
Rated Current - Cooling	21.7 A
Rated Current - Heating	22.6 A
MOCP	35 A
MCA	30 A
Main Power Wire Size	Per Local Code
Interconnecting Wire Size	14 / 4 AWG

Features & Functions Summary

• Inverter Type: G20
• Ultra Low Frequency Torque Control: Yes
• Compressor Type - Inverter: Yes
• Basepan With Electric Heater: Yes
• Indoor & Outdoor Fin Coating (Blue Fin): Yes
• Intelligent Defrosting: Yes
• Intelligent Preheating: Yes
• Low Voltage Startup: Yes
• Memory/Power Failure Recovery: Yes
• Self Diagnosis: Yes

*GWIN Tech only pays for commissioning of system. Installation and additional refrigerant to the system is not included.
