GWIN Assisted DIY 21,000 BTU 230V King (18k condenser 9K+12K Wall Mount) Complete System With 15' Line Set Communication Wire and GWIN Assisted DIY Tech
GWIN Assisted DIY 21,000 BTU 230V King (18k condenser 9K+12K Wall Mount) Complete System With 15' Line Set Communication Wire and GWIN Assisted DIY Tech
Couldn't load pickup availability
GWIN 21,000 BTU 230V King (9K+12K) Complete System With 15' Line Set, Communication Wire & GWIN Tech
Bring efficient multi-room comfort home with this GWIN 230V two‑zone complete system. This package pairs an 18,000 BTU outdoor condenser with one 9,000 BTU wall‑mount indoor air handler and one 12,000 BTU wall‑mount indoor air handler, making it a great fit for two separate areas that need individualized comfort control. This combination is perfect if you have one room that is ~400 sq ft and another that is ~550 sq ft.
Designed for flexibility and confidence, this bundle includes two 15‑foot line sets, two 15‑foot communication wires, two remote controls, and 1x GWIN Tech to commission your system.
The GWIN 21,000 BTU King (9K+12K) Complete System is a two‑zone 230V ductless solution built around an 18,000 BTU outdoor heat pump and matched 9k + 12k wall‑mount indoor units. With included 15' line sets, communication wire, remotes, Wi‑Fi‑ready indoor units, and 1x GWIN Tech included for commissioning, this package delivers an Assisted DIY Installation advantage with expert support from day one.
Assisted DIY Installation Advantage
GWIN is built for homeowners and installers who want the freedom of a full Assisted DIY install with full warranty while still having expert support available from day one. This system is positioned as the first Assisted DIY system to come with a tech, giving buyers added confidence during installation and startup.
- Professional commercial grade compressors and control boards

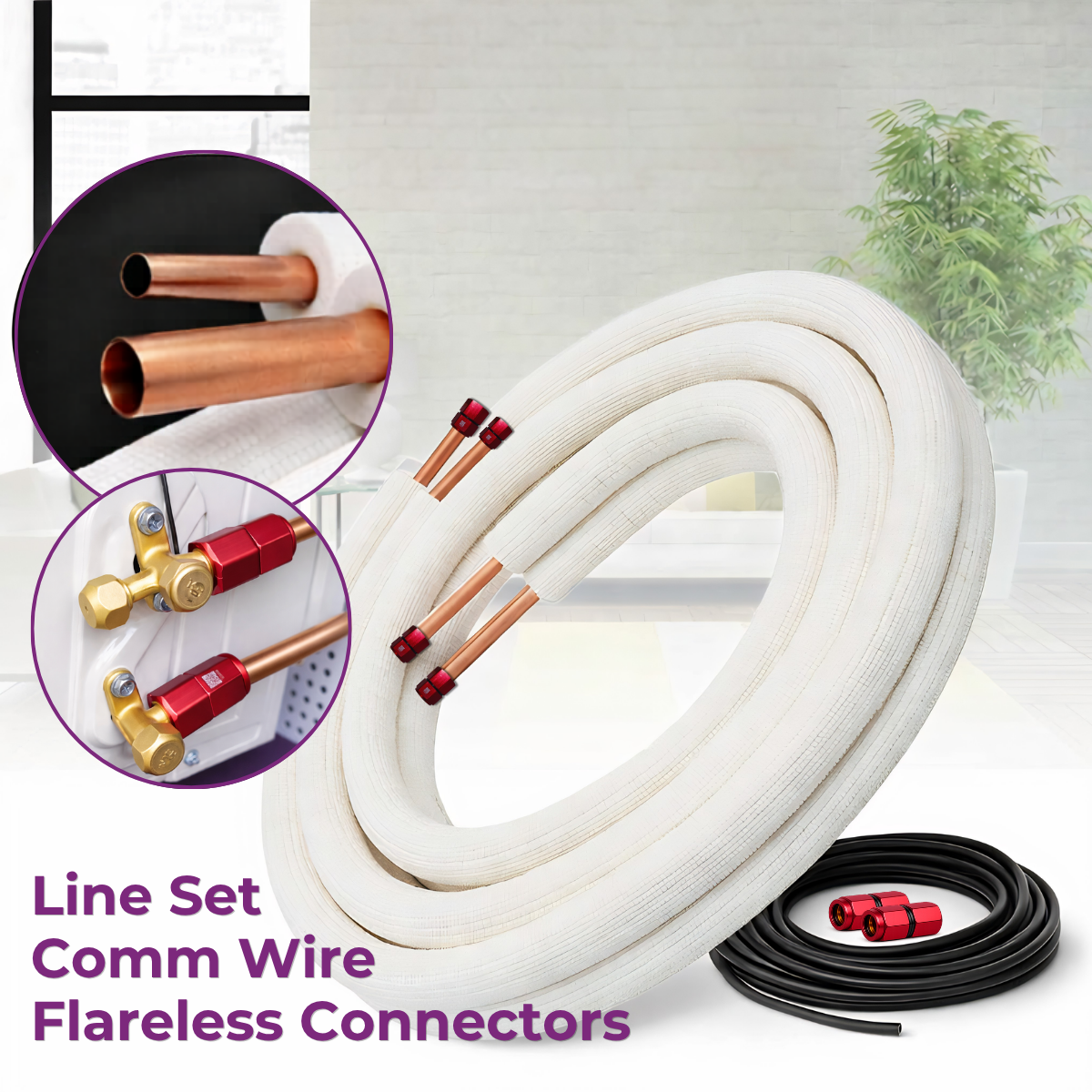

- Flareless brassless connection approach
- Cut‑to‑length line set installation flexibility
- Comes with GWIN Tech included — described as the first system to ever come with a tech, only to commission system
- No worries in your install with a GWIN Tech included
- Full Assisted DIY install with full warranty
BTU - Square Feet
- 9k Wall Mount Air Handler‑ capable of cooling and heating 400 sq ft
- 12k Wall Mount Air Handler‑ capable of cooling and heating 550 sq ft

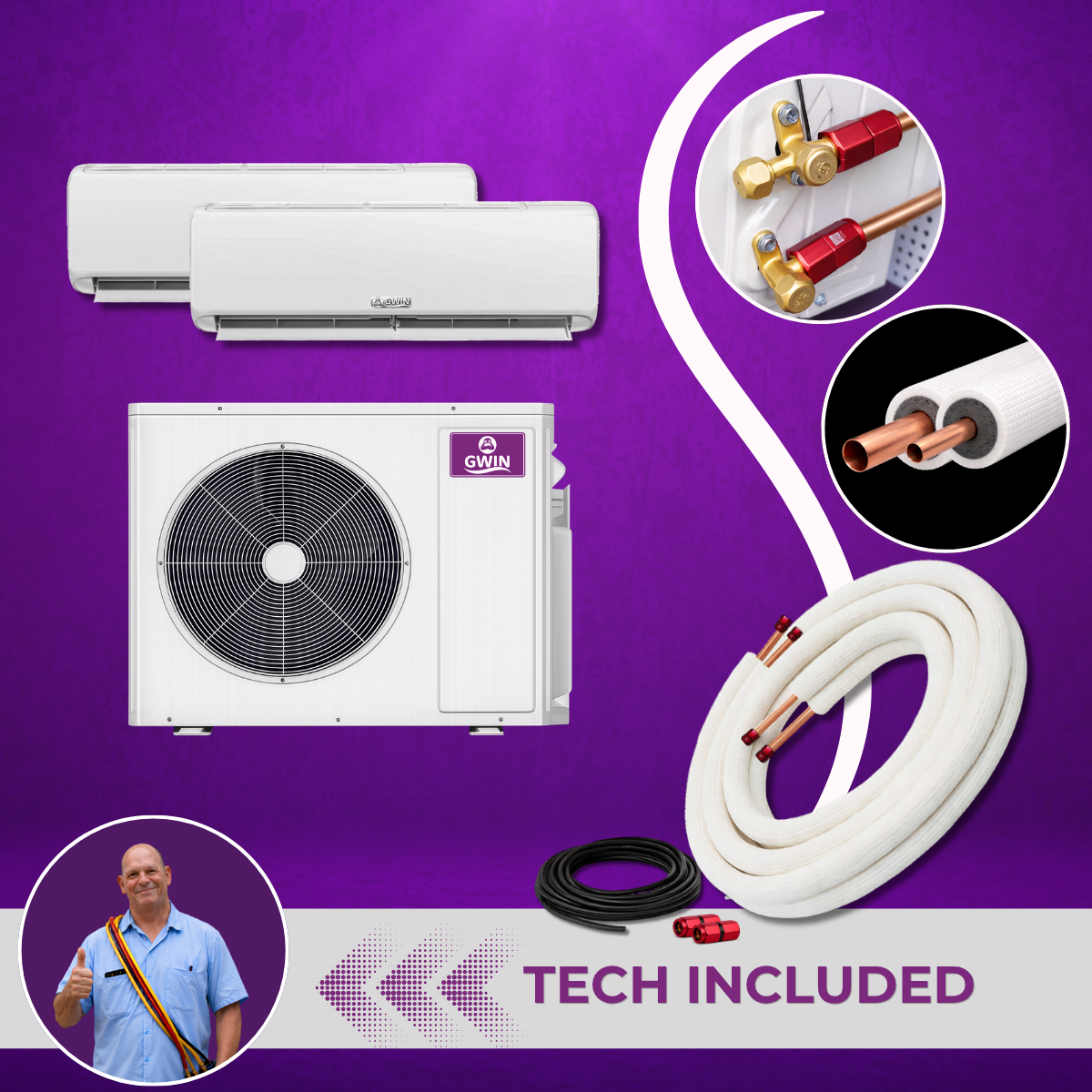

What Is Included
- 1x GWIN Tech
- 1x GWIN 9,000 BTU wall‑mount indoor air handler
- 1x GWIN 12,000 BTU wall‑mount indoor air handler
- 1x 18,000 BTU outdoor condenser
- 2x 15 foot line sets
- 2x Communication wires
- 2x Remote controls
Why Buyers Like This Bundle
- Two‑zone comfort with separate indoor units for better room‑to‑room control
- Outdoor condenser supports 2 zones
- Wi‑Fi included on both indoor units
- 7 indoor fan speeds on each wall‑mount unit
- Flexible operation across cooling and heating needs
- Base pan heater, intelligent defrosting, intelligent preheating, and low voltage startup built into the outdoor unit
Indoor Unit Specifications – 9,000 BTU Wall Mount
| Indoor Model | KING09HP230V1R32AH |
| System Type | Heat Pump |
| Cooling Capacity | 9,000 Btu/h |
| Heating Capacity | 10,000 Btu/h |

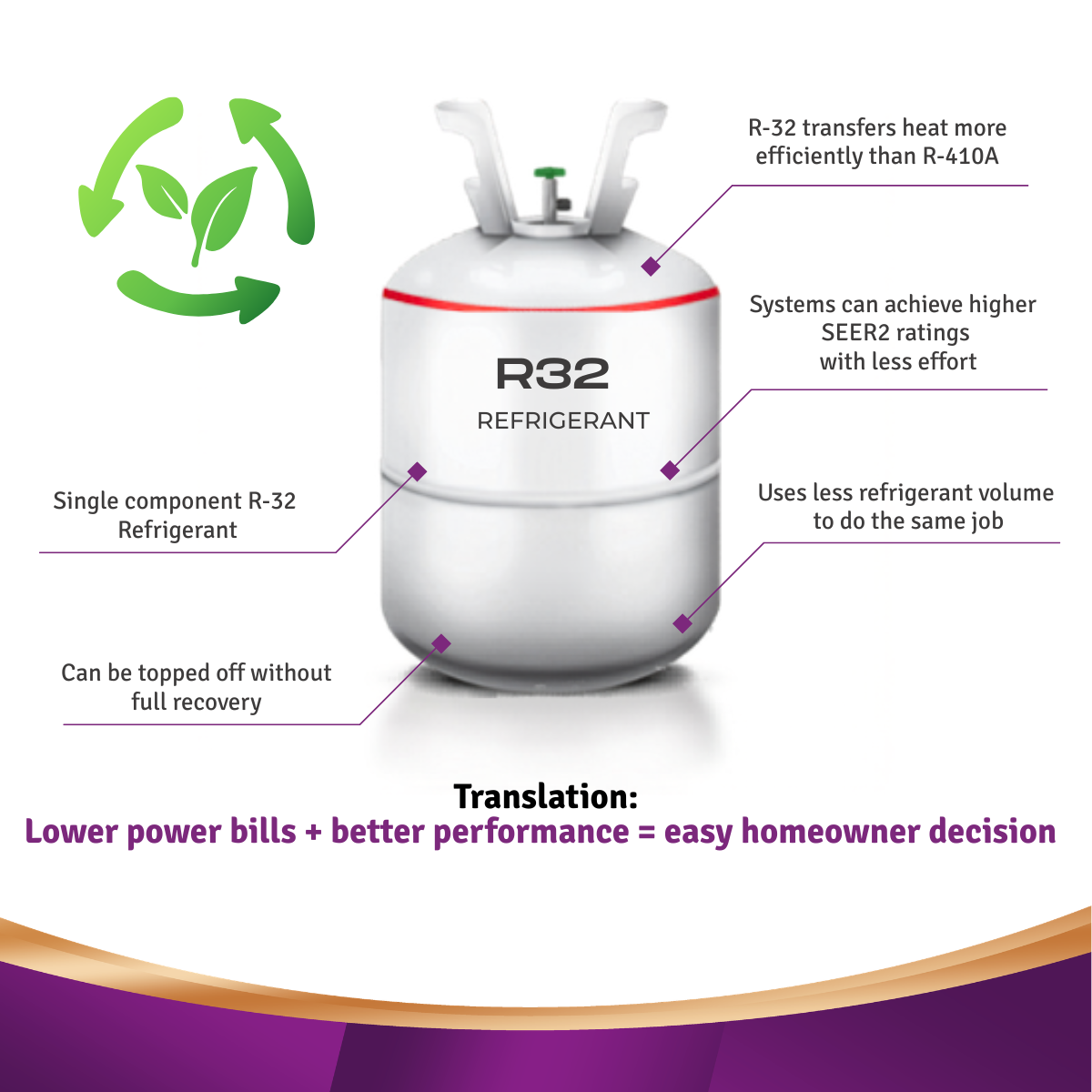

| Refrigerant Type | R32 |
| Air Flow (Min - Max) | 235 - 424 CFM |
| Sound Pressure Level (Min - Max) | 27 - 45 dB(A) |
| Dehumidification | 2.11 pt/hr |
| External Dimensions (W x H x D) | 32‑7/8 x 10‑53/64 x 7‑7/8 in |
| Package Dimensions (W x H x D) | 35‑15/64 x 13‑37/64 x 10‑43/64 in |
| Net Weight | 19.8 lbs |
| Gross Weight | 24.3 lbs |
| Line Set Size (Liquid - Gas) | 1/4 - 3/8 in |
| Power Supply | 208‑230V / 1Ph / 60Hz (Powered by the Outdoor Unit) |
9,000 BTU Indoor Features & Functions
- Wired controller interface: Yes
- WiFi included: Yes
- Indoor fan type: Crossflow
- Multi fan speeds: 7 Speeds
- Indoor unit display: Yes
- Auxiliary electrical heater: No
- Ventilation (Outdoor Air): No
- Remote control functions: Auto Mode, Auto Fan, Horizontal Auto Swing, Vertical Auto Swing, Clock, Dry Mode, Dry Anti‑Mildew (X‑Fan), Energy Saving, I Feel, Lock, Quiet Mode, Room Temperature Display, Sleep Mode, Timer Mode, Turbo Mode, Display On/Off Control, Freeze Guard Mode (46°F)
Indoor Unit Specifications – 12,000 BTU Wall Mount
| Indoor Model | KING12HP230V1R32AH |
| System Type | Heat Pump |
| Cooling Capacity | 12,000 Btu/h |
| Heating Capacity | 12,000 Btu/h |
| Refrigerant Type | R32 |
| Air Flow (Min - Max) | 182 - 424 CFM |
| Sound Pressure Level | 27 - 47 dB(A) |
| Dehumidification | 2.96 pt/hr |
| External Dimensions (W x H x D) | 32‑7/8 x 10‑53/64 x 7‑7/8 in |
| Package Dimensions (W x H x D) | 35‑15/64 x 13‑37/64 x 10‑43/64 in |
| Net Weight | 19.8 lbs |
| Gross Weight | 24.3 lbs |
| Line Set Size (Liquid - Gas) | 1/4 - 3/8 in |
| Power Supply | 208‑230V / 1Ph / 60Hz (Powered by Outdoor Unit) |
12,000 BTU Indoor Features & Functions
- Wired controller interface: Yes
- WiFi included: Yes
- Indoor fan type: Crossflow
- Multi fan speeds: Yes
- Indoor unit display: Yes
- Auxiliary electrical heater: No
- Ventilation (Outdoor Air): No
- Remote control functions: Auto Mode, Auto Fan, Horizontal Auto Swing, Vertical Auto Swing, Clock, Dry Mode, Dry Anti‑Mildew (X‑Fan), Energy Saving, I Feel, Lock, Quiet Mode, Room Temperature Display, Sleep Mode, Timer Mode, Turbo Mode, Display On/Off Control, Freeze Guard Mode (46°F)
Outdoor Condenser Specifications
System Performance (Non‑Ducted Indoor Units)
| Outdoor Model | GMUL18HP230V1R32AO |
| Number of Zones | 2 |
| Cooling Capacity (Min - Max) | 7,300 - 19,800 Btu/h |
| Cooling Rated Capacity @95°F | 18,000 Btu/h |
| Heating Capacity (Min - Max) | 7,300 - 18,100 Btu/h |
| Heating Rated Capacity @47°F | 18,000 Btu/h |
| Heating Rated Capacity @17°F | 16,000 Btu/h |
| Heating Rated Capacity @5°F | 13,800 Btu/h |
| SEER2 | 21 |
| EER2 | 12.0 |
| HSPF2 | 10.0 |
| COP @5°F | 2.0 |
Outdoor Unit
| System Type | Heat Pump |
| Cooling Temperature Range | -22 to 118°F |
| Heating Temperature Range | -22 to 75°F |
| Refrigerant Type | R32 |
| Compressor Type | Double Cylinder / 1‑Stage Inverter |
| Sound Pressure Level | 51 dB(A) |
| External Dimensions (W x H x D) | 32‑23/64 × 21‑42/64 × 13‑55/64 in |
| Package Dimensions (W x H x D) | 34‑21/64 × 24‑13/32 × 15‑43/64 in |
| Net Weight | 78.3 lbs |
| Gross Weight | 84.9 lbs |
Refrigerant Piping
| Refrigerant Charge - R32 | 31.752 oz |
| Additional Charge | 0.2 oz/ft |
| Port A (Liquid - Gas) | 1/4 - 3/8 in |
| Port B (Liquid - Gas) | 1/4 - 3/8 in |
| Pre‑Charge Length | 33 ft |
| Pipe Length (Min - Max) | 10 - 131 ft |
| Pipe Length to Furthest Indoor Unit | 66 ft |
| Max Pipe Elevation | 49 ft |
Electrical
| Power Supply | 208‑230V / 1Ph / 60Hz |
| Voltage Range (Min - Max) | 187 - 253 VAC |
| Rated Current - Cooling | 11 A |
| Rated Current - Heating | 11 A |
| MOCP | 20 A |
| MCA | 14.5 A |
| Main Power Wire Size | Per Local Code |
| Interconnecting Wire Size | 14 / 4 AWG |
Features & Functions Summary
- Inverter Type: G20
- Ultra Low Frequency Torque Control: Yes
- Compressor Type - Inverter: Yes
- Basepan With Electric Heater: Yes
- Indoor & Outdoor Fin Coating (Blue Fin): Yes
- Intelligent Defrosting: Yes
- Intelligent Preheating: Yes
- Low Voltage Startup: Yes
- Memory/Power Failure Recovery: Yes
- Self Diagnosis: Yes
*GWIN Tech only pays for commissioning of system. Installation and additional refrigerant to the system is not included.
