GWIN Assisted DIY 14,000 BTU 230V King (24k condenser 7K+7K Wall Mount) Complete System With 15' Line Set Communication Wire and GWIN Assisted DIY Tech

GWIN 14,000 BTU 230V King (7K+7K) Complete System With 15' Line Set, Communication Wire & GWIN Tech

Bring efficient multi-room comfort home with this GWIN 230V two-zone complete system. This package pairs a 24,000 BTU outdoor condenser with two 7,000 BTU wall-mount indoor air handlers, making it ideal for two separate areas of equal size that need individualized comfort control. This combination is perfect if you have two rooms that are each 300 sq ft.

Designed for flexibility and confidence, this bundle includes two 15-foot line sets, two 15-foot communication wires, two remote controls, and 1x GWIN Tech to commission your system.

The GWIN 14,000 BTU King (7K+7K) Complete System is a two-zone 230V ductless solution built around a 24,000 BTU outdoor heat pump and matched 7k + 7k wall-mount indoor units. With included 15' line sets, communication wire, remotes, Wi-Fi-ready indoor units, and 1x GWIN Tech included for commissioning, this package delivers an Assisted DIY Installation advantage with expert support from day one.

Assisted DIY Installation Advantage

GWIN is built for homeowners and installers who want the freedom of a full Assisted DIY install with full warranty while still having expert support available from day one. This system is positioned as the first Assisted DIY system to come with a tech, giving buyers added confidence during installation and startup.

• Professional commercial grade compressors and control boards
• Flareless brassless connection approach
• Cut-to-length line set installation flexibility
• Comes with GWIN Tech included — described as the first system to ever come with a tech, only to commission system
• No worries in your install with a GWIN Tech included
• Full Assisted DIY install with full warranty

BTU - Square Feet

• 7k Wall Mount Air Handler - capable of cooling and heating 300 sq ft
• 7k Wall Mount Air Handler - capable of cooling and heating 300 sq ft
• Total Coverage: 600 sq ft

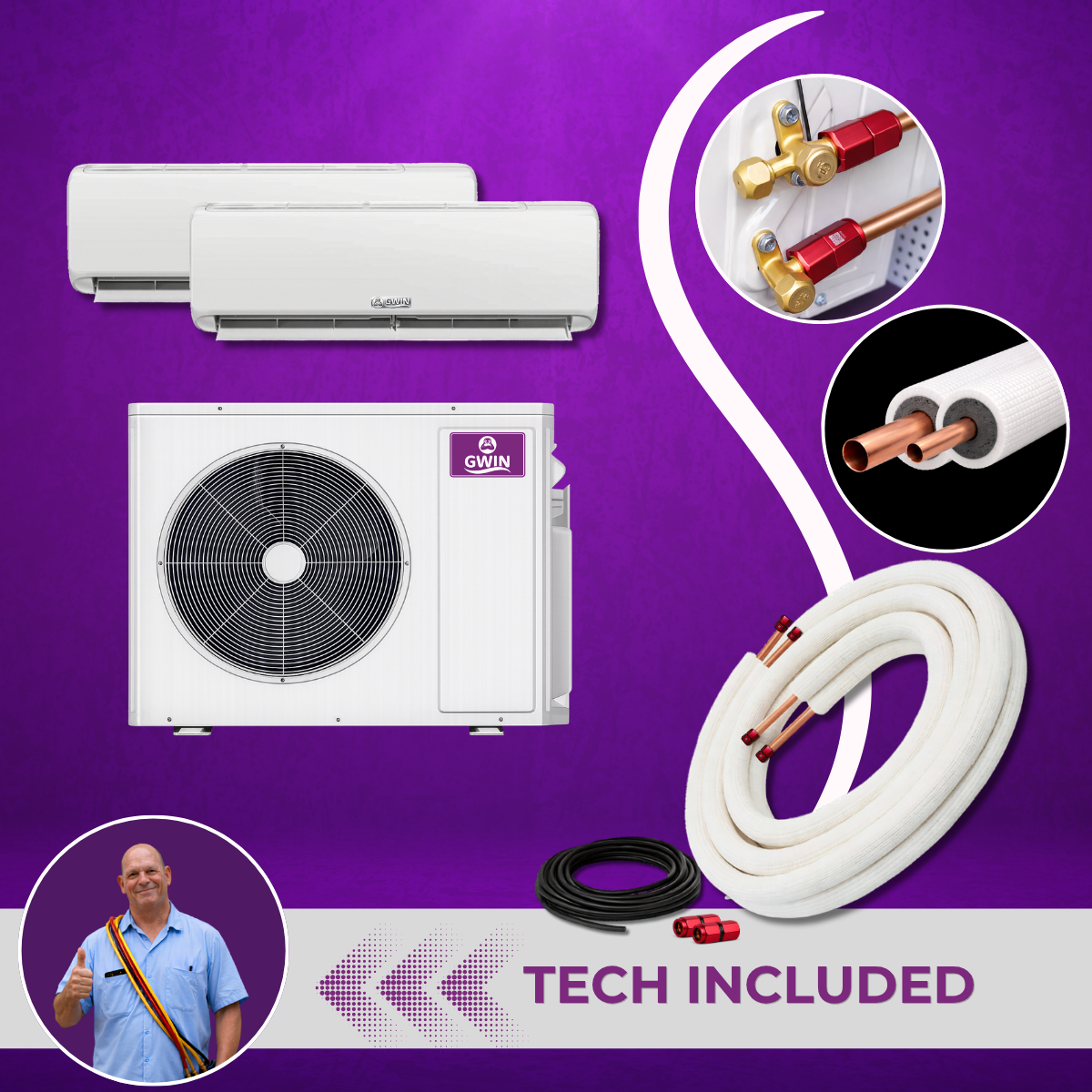

What Is Included

• 1x GWIN Tech
• 2x GWIN 7,000 BTU wall-mount indoor air handlers
• 1x Outdoor condenser (24,000 BTU)

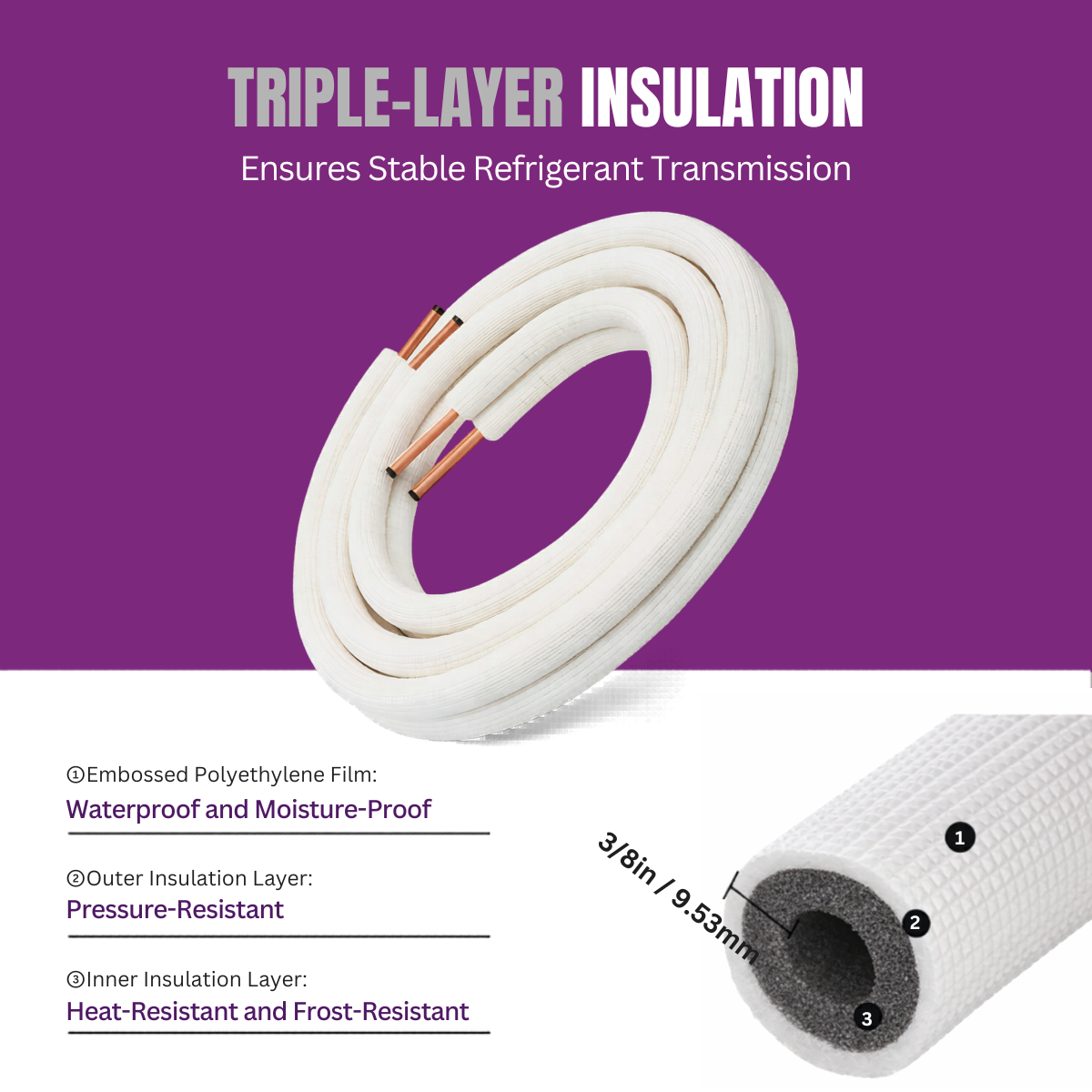

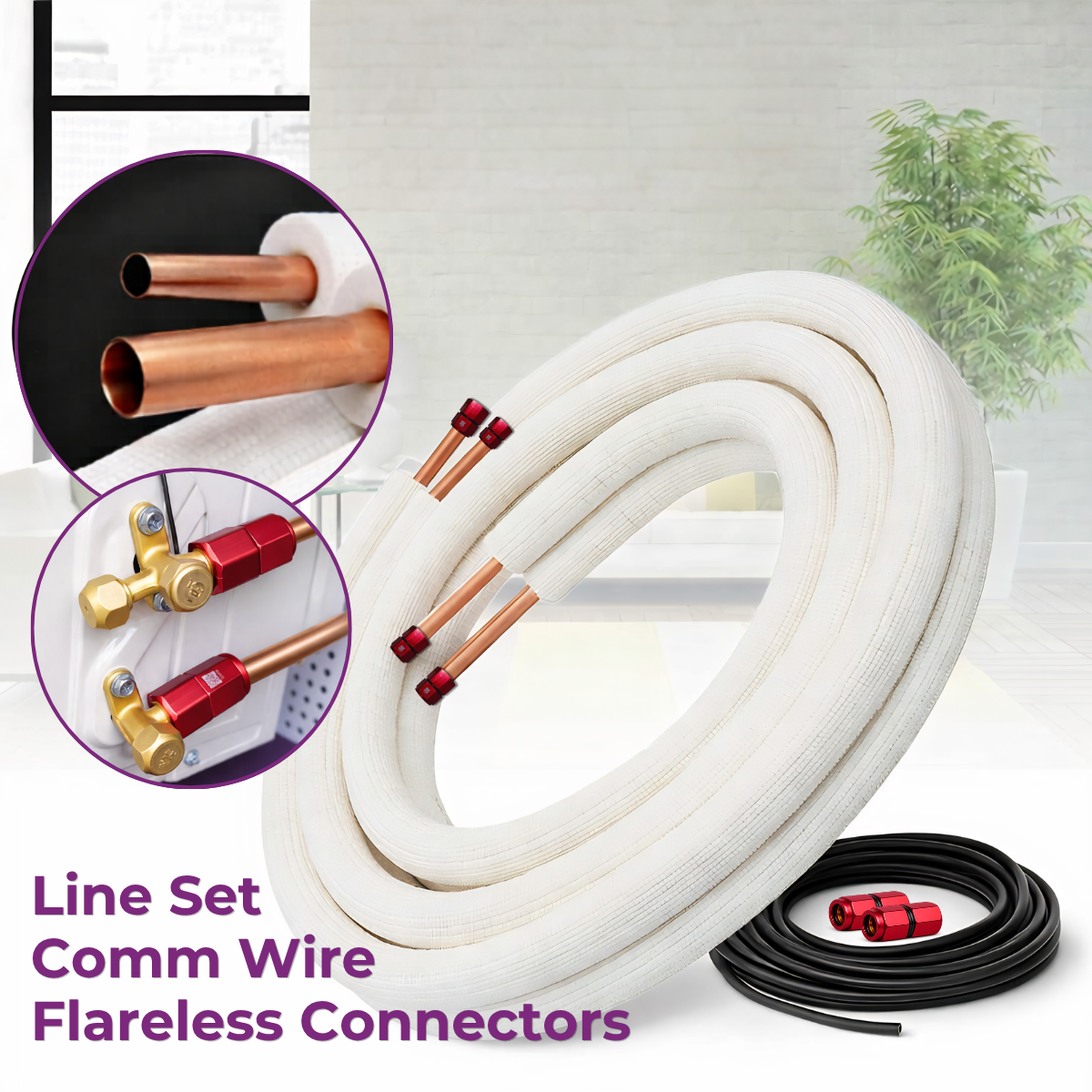

• 2x 15 foot line sets
• 2x Communication wires
• 2x Remote controls

Why Buyers Like This Bundle

• Two-zone comfort with separate indoor units for better room-to-room control
• Outdoor condenser supports 2 zones
• Wi-Fi included on both indoor units
• 7 indoor fan speeds on each wall-mount unit
• Low ambient operation down to -22°F on the outdoor unit for both cooling and heating ranges
• Base pan heater, intelligent defrosting, intelligent preheating, and low voltage startup built into the outdoor unit
• Balanced capacity sizing for even comfort across both rooms

Indoor Unit Specifications – 7,000 BTU Wall Mount (Unit 1)

Indoor Model	KING07HP230V1R32AH
System Type	Heat Pump
Cooling Capacity (Nominal)	7,000 Btu/h
Heating Capacity (Nominal)	8,000 Btu/h
Refrigerant Type	R32
Air Flow (Min - Max)	135 - 259 CFM
Sound Pressure Level (Min - Max)	23 - 38 dB(A)
Dehumidification	1.27 pt/hr
External Dimensions (W x H x D)	27-7/8 x 10-15/64 x 7-18/64 in
Package Dimensions (W x H x D)	29-41/64 x 13-5/64 x 10-10/64 in
Net Weight	15.4 lbs
Gross Weight	18.7 lbs
Line Set Size (Liquid - Gas)	1/4 - 3/8 in
Power Supply	208-230V / 1Ph / 60Hz (Powered by the Outdoor Unit)

7,000 BTU Indoor Features & Functions

• Wired controller interface: Yes
• WiFi included: Yes
• Indoor fan type: Crossflow
• Multi fan speeds: 7 Speeds
• Indoor unit display: Yes
• Auxiliary electrical heater: No
• Ventilation (Outdoor Air): No
• Remote control functions: Auto Mode, Auto Fan, Horizontal Auto Swing, Vertical Auto Swing, Clock, Dry Mode, Dry Anti-Mildew (X-Fan), Energy Saving, I Feel, Lock, Quiet Mode, Room Temperature Display, Sleep Mode, Timer Mode, Turbo Mode, Display On/Off Control, Freeze Guard Mode (46°F)

Indoor Unit Specifications – 7,000 BTU Wall Mount (Unit 2)

Indoor Model	KING07HP230V1R32AH
System Type	Heat Pump
Cooling Capacity (Nominal)	7,000 Btu/h
Heating Capacity (Nominal)	8,000 Btu/h
Refrigerant Type	R32
Air Flow (Min - Max)	135 - 259 CFM
Sound Pressure Level (Min - Max)	23 - 38 dB(A)
Dehumidification	1.27 pt/hr
External Dimensions (W x H x D)	27-7/8 x 10-15/64 x 7-18/64 in
Package Dimensions (W x H x D)	29-41/64 x 13-5/64 x 10-10/64 in
Net Weight	15.4 lbs
Gross Weight	18.7 lbs
Line Set Size (Liquid - Gas)	1/4 - 3/8 in
Power Supply	208-230V / 1Ph / 60Hz (Powered by the Outdoor Unit)

7,000 BTU Indoor Features & Functions (Unit 2)

• Wired controller interface: Yes
• WiFi included: Yes
• Indoor fan type: Crossflow
• Multi fan speeds: 7 Speeds
• Indoor unit display: Yes
• Auxiliary electrical heater: No
• Ventilation (Outdoor Air): No
• Remote control functions: Auto Mode, Auto Fan, Horizontal Auto Swing, Vertical Auto Swing, Clock, Dry Mode, Dry Anti-Mildew (X-Fan), Energy Saving, I Feel, Lock, Quiet Mode, Room Temperature Display, Sleep Mode, Timer Mode, Turbo Mode, Display On/Off Control, Freeze Guard Mode (46°F)

Outdoor Condenser Specifications

System Performance (Non-Ducted Indoor Units)

Outdoor Model	GMUL24HP230V1R32AO
Number of Zones	3
Cooling Capacity (Min - Max)	8,900 - 26,000 Btu/h
Cooling Rated Capacity @95°F	24,000 Btu/h
Heating Capacity (Min - Max)	8,900 - 24,000 Btu/h
Heating Rated Capacity @47°F	24,000 Btu/h
Heating Rated Capacity @17°F	20,100 Btu/h
Heating Rated Capacity @5°F	17,600 Btu/h
SEER2	21
EER2	12.0
HSPF2	10.0
COP @5°F	2.0

Outdoor Unit

System Type	Heat Pump
Cooling Temperature Range	-22 to 118°F
Heating Temperature Range	-22 to 75°F
Refrigerant Type	R32
Compressor Type	GREE G-20 / Double Cylinder / 1-Stage Inverter
Sound Pressure Level	51 dB(A)
External Dimensions (W x H x D)	35-39/64 × 23-37/64 × 13-55/64 in
Package Dimensions (W x H x D)	37-37/64 × 26-13/32 × 15-43/64 in
Net Weight	88.2 lbs
Gross Weight	95.2 lbs

Refrigerant Piping

Refrigerant Charge - R32	39.68 oz
Additional Charge	0.2 oz/ft
Port A (Liquid - Gas)	1/4 - 3/8 in
Port B (Liquid - Gas)	1/4 - 3/8 in
Pre-Charge Length	33 ft
Pipe Length (Min - Max)	10 - 131 ft
Pipe Length to Furthest Indoor Unit	66 ft
Max Pipe Elevation	49 ft

Electrical

Power Supply	208-230V / 1Ph / 60Hz
Voltage Range (Min - Max)	187 - 253 VAC
Rated Current - Cooling	13.5 A
Rated Current - Heating	13.5 A
MOCP	20 A
MCA	17.5 A
Main Power Wire Size	Per Local Code
Interconnecting Wire Size	14 / 4 AWG

Features & Functions Summary

• Inverter Type: G20
• Ultra Low Frequency Torque Control: Yes
• Compressor Type - Inverter: Yes
• Basepan With Electric Heater: Yes
• Indoor & Outdoor Fin Coating (Blue Fin): Yes
• Intelligent Defrosting: Yes
• Intelligent Preheating: Yes
• Low Voltage Startup: Yes
• Memory/Power Failure Recovery: Yes
• Self Diagnosis: Yes

*GWIN Tech only pays for commissioning of system. Installation and additional refrigerant to the system is not included.
