GWIN Assisted DIY 25,000 BTU 22 SEER2 230V Three-Zone Ductless Mini-Split Complete System (24k condenser,7K + 9K + 9K Wall Mount) with 15 foot line set and communication wire
GWIN Assisted DIY 25,000 BTU 22 SEER2 230V Three-Zone Ductless Mini-Split Complete System (24k condenser,7K + 9K + 9K Wall Mount) with 15 foot line set and communication wire
Couldn't load pickup availability
GWIN Assisted DIY 25,000 BTU 22 SEER2 230V Three-Zone Ductless Mini-Split Complete System (24k condenser,7K + 9K + 9K Wall Mount) with 15 foot line set and communication wire
System Features:

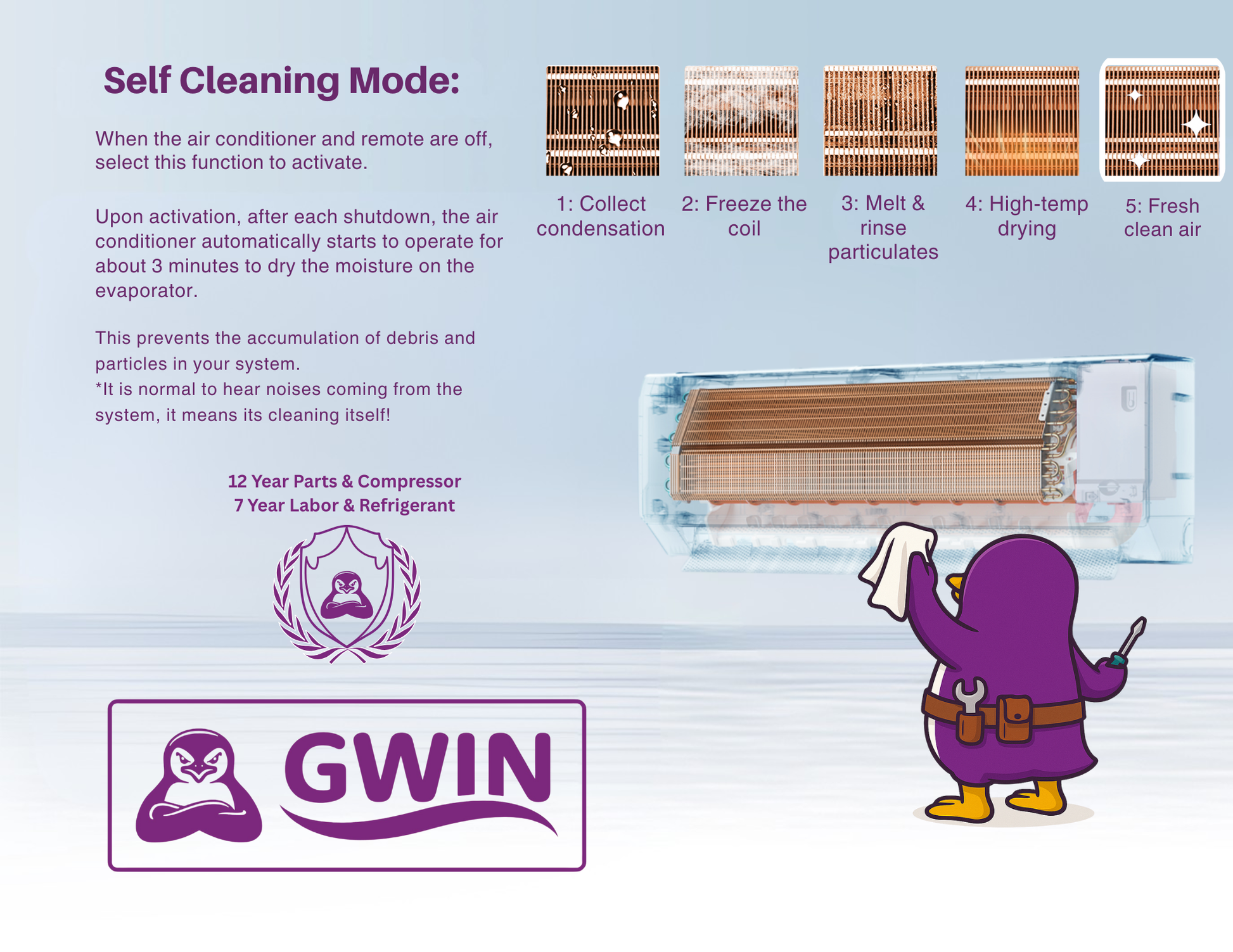

- Self-Cleaning: Eliminates bacteria, viruses, dust mites, microorganisms, and dust particles. Advanced sterilization system reaches 134°F to remove viruses, bacteria, dust, and pollen for clean air.
- Micro-Vent Soft Airflow: Thousands of precision micro-vents create a gentle, draft-free breeze for optimum comfort. *depending on system
- Outdoor Unit Operation: Reliable performance from -22°F to 125°F for all-season comfort.
- Wide Voltage Fluctuation: Tolerates unstable grid conditions with a range of 165V–265V.
- Base Pan Heater: Automatically activates in low temperatures to reduce ice build-up and improve heating efficiency.
- Wi-Fi Control: Built-in Wi-Fi module allows convenient temperature and mode adjustments from anywhere.
- Fast Heating and Cooling: Inverter compressor rapidly achieves your desired room temperature.
- Offline Voice Control: Operate the unit with simple same-room voice commands—no app required.
- ECO Energy-Saving Mode: Designed to reduce power use and help save energy.
- Easy Installation: Includes installation guide, mounting plate, and built-in level for faster installs.
Built for Reliability
- Golden Fin Coils (indoor and outdoor): Enhanced resistance to corrosion and oxidation versus conventional blue-fin coatings.
- Outdoor PCB “Three-Proof” design: UV-adhesive cover and vertical placement help reduce corrosion and deformation for lower failure rates.
Warranty
-
12 Year Parts and Compressor (Registered)
- 7 Year Parts and Compressor (Unregistered)
- 7 Year Labor and Refrigerant
Indoor Units

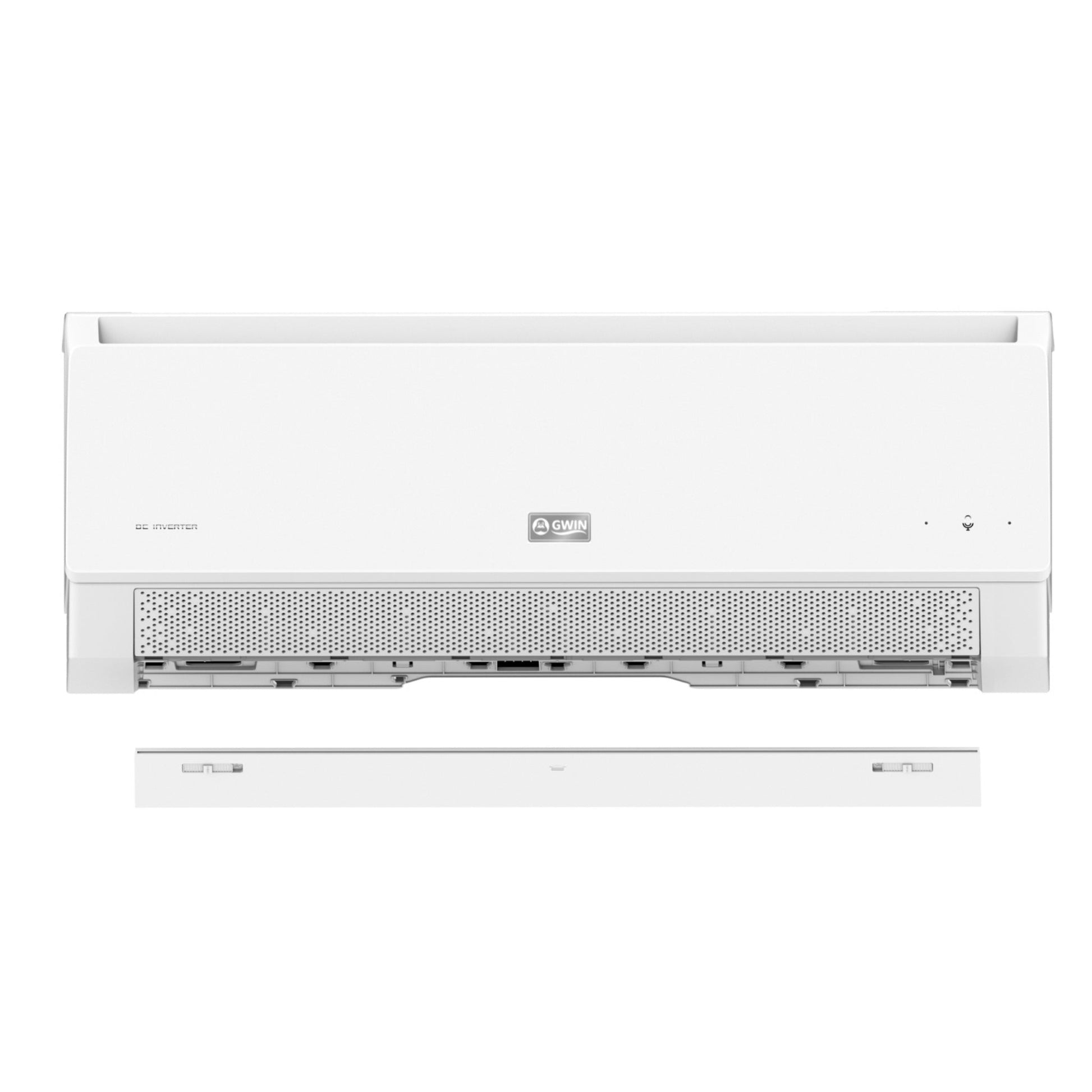

7,000 BTU Wall-Mount Indoor Unit (Model: GAFEB07HP230V1EH)
*Indoor unit output may vary depending on multi-zone configuration. Air handlers and condensers may affect the output of the individual air handlers.
- Cooling: 7,000 BTU/h • Heating: 7,000 BTU/h
- Power Supply: 208–230V 1Ph 60Hz • Input: 0.20A
- Air Flow (CFM) — Cool: 353 / 312 / 282 / 253 • Heat: 353 / 324 / 288 / 253
- Sound: 41 dB(A)
- Net Dimensions (in): 30.47 × 11.481 × 8.43
- Packing Dimensions (Panel) (in): 32.87 × 14.61 × 11.81
- Net/Gross (lbs): 17.64/22.05
- Piping: Liquid 1/4″ • Gas 3/8″ • Drain 0.6654″

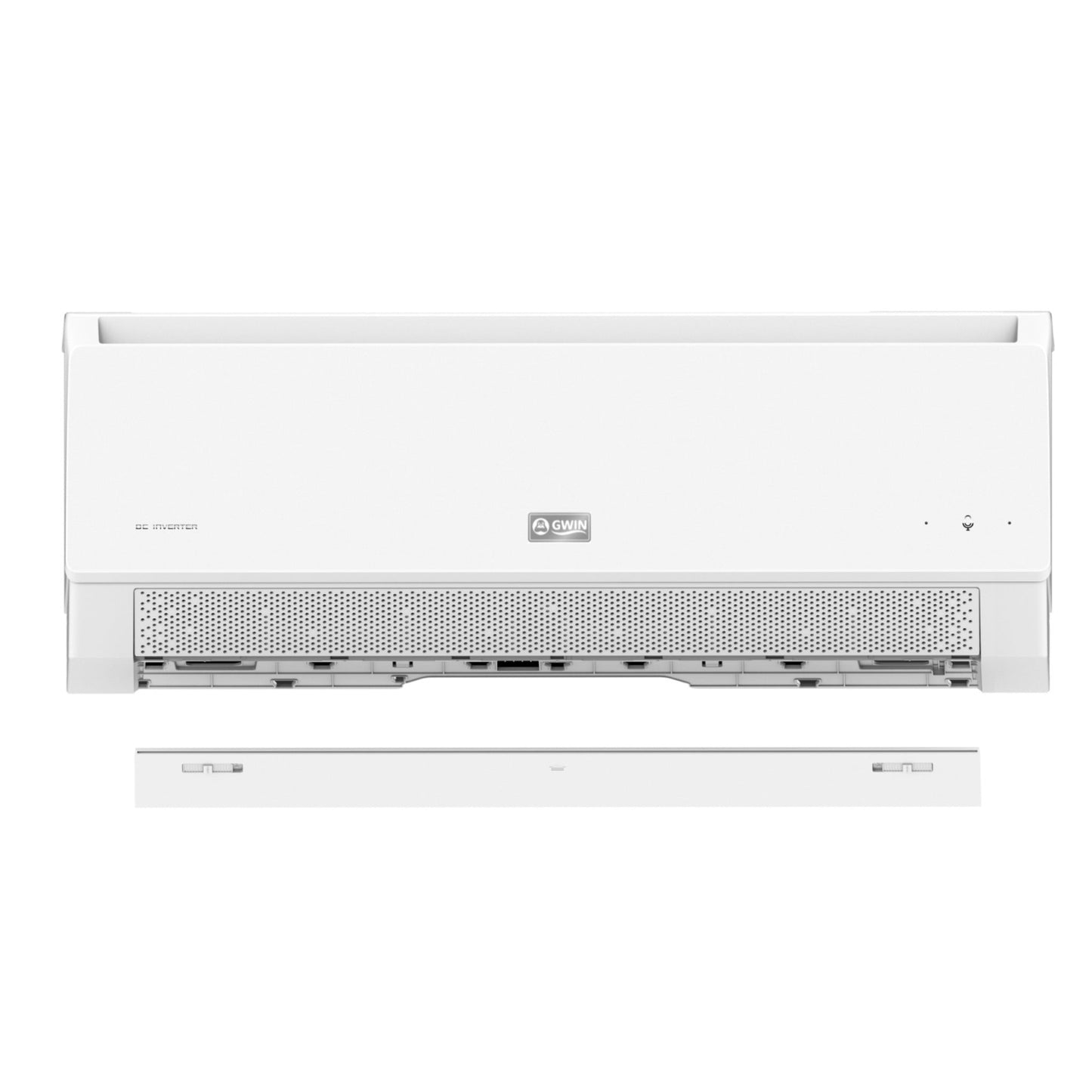

9,000 BTU Wall-Mount Indoor Unit (Model: GAFEB09HP230V1EH)
*Indoor unit output may vary depending on multi-zone configuration. Air handlers and condensers may affect the output of the individual air handlers.
- Cooling: 9,100 BTU/h • Heating: 10,000 BTU/h
- Power Supply: 208–230V 1Ph 60Hz • Input: 0.20A
- Air Flow (CFM) — Cool: 353 / 312 / 282 / 253 • Heat: 353 / 324 / 288 / 253
- Sound: 41 dB(A)
- Net Dimensions (in): 30.47 × 11.481 × 8.43 • Weight: 20.94 lb
- Packing Dimensions (Panel) (in): 32.87 × 14.61 × 11.81 • Weight: 20.94 lb
- Net/Gross (lbs): 17.64/22.05
- Piping: Liquid 1/4″ • Gas 3/8″ • Drain 0.6654″
Outdoor Condenser

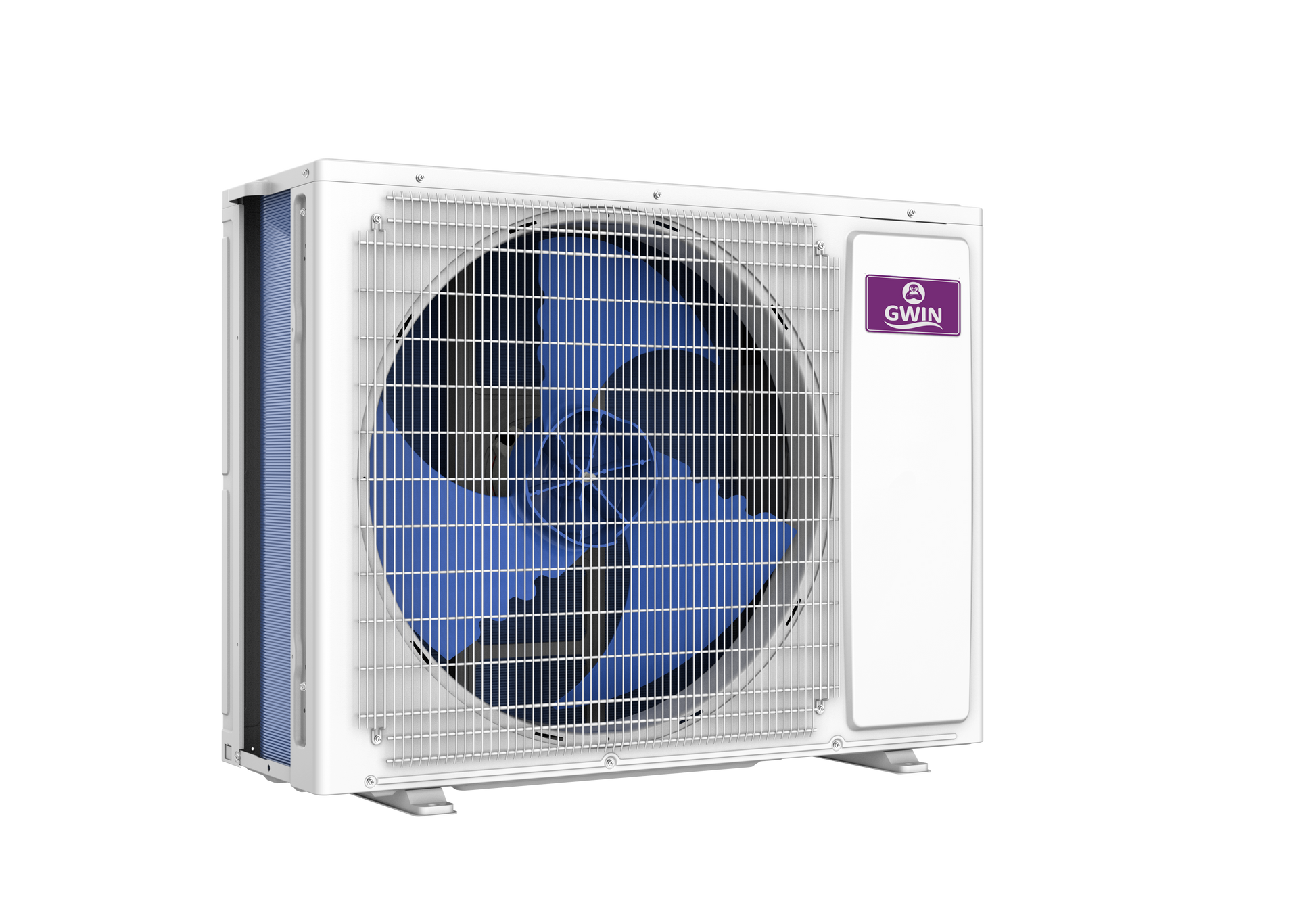

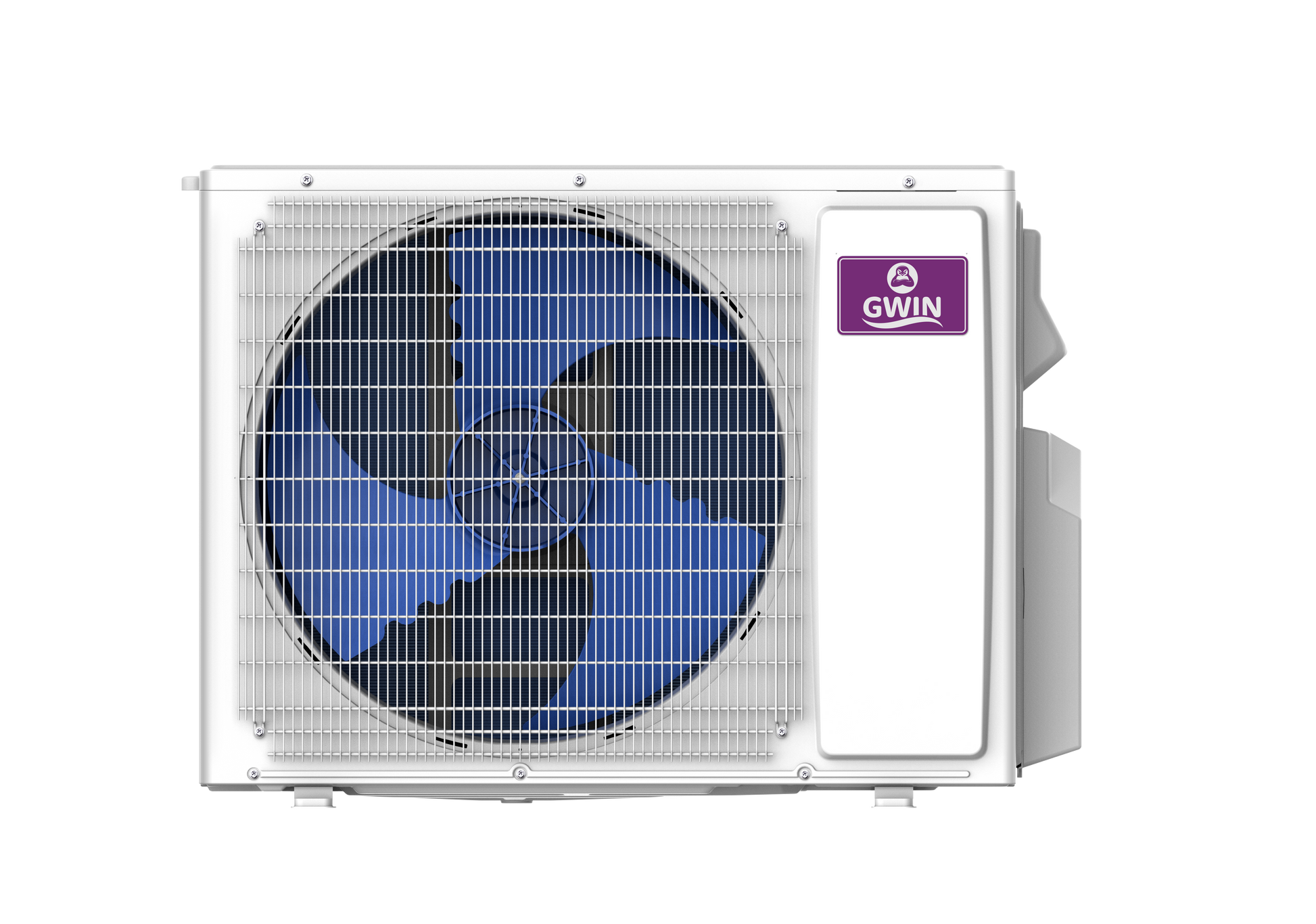

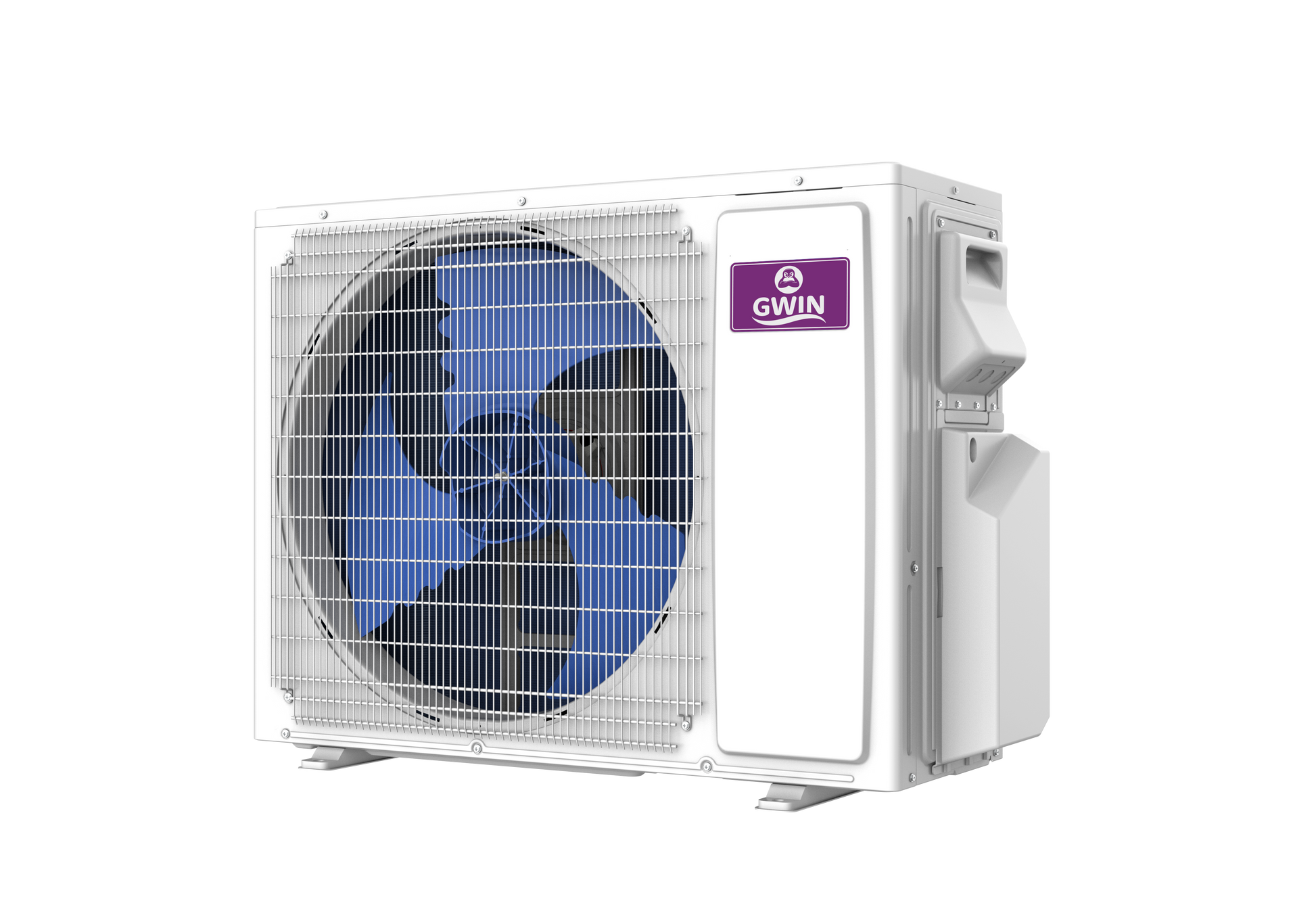

24,000 BTU Outdoor Condenser – GWIN (Model: GASUM24HPMULO)
Cooling Performance (Non-Ducted Indoor Units)
- Rated Capacity: 24,000 BTU/h
- Capacity Range: 5,500 – 32,300 BTU/h
- Rated Power Input: 1,850 W (non-ducted)
- Moisture Removal: 4.5 kg/h
Cooling Performance (Ducted Indoor Units)
- Rated Capacity: 24,000 BTU/h
- Capacity Range: 5,500 – 32,300 BTU/h
- Rated Power Input: 1,846 W
- Moisture Removal:4.5 kg/h
Cooling Performance (Mixed Ducted and Non-Ducted Indoor Units)
- Rated Capacity: 24,000 BTU/h
- Capacity Range: 5,500 – 32,300 BTU/h
- Rated Power Input: 1,846 W
- Moisture Removal: 4.5 kg/h
Heating Performance (Non-Ducted Indoor Units)
- Rated Capacity @ 47°F: 26,000 BTU/h)
- Capacity Range: 5,850 – 36,000 BTU/h
- Rated Power Input @ 47°F: 1,730 W
- Capacity at 17°F: 27,600 BTU/h
- Capacity at 5°F: 25,900 BTU/h
Heating Performance (Ducted Indoor Units)
- Rated Capacity @ 47°F: 26,000 BTU/h)
- Capacity Range: 5,850 – 36,000 BTU/h
- Rated Power Input @ 47°F: 1,814 W
- Capacity at 17°F: 21,000 BTU/h
- Capacity at 5°F: 19,800 BTU/h
Heating Performance (Mixed Ducted and Non-Ducted Indoor Units)
- Rated Capacity @ 47°F: 26,000 BTU/h)
- Capacity Range: 5,850 – 36,000 BTU/h
- Rated Power Input @ 47°F: 1,772 W
- Capacity at 17°F: 24,300 BTU/h
- Capacity at 5°F: 23,850 BTU/h
Efficiency
- Non-Ducted: SEER2 24 • HSPF2 10.5 • EER2 13• COP 4.4
- Ducted: SEER2 21 • HSPF2 10 • EER2 13 • COP 4.2
- Mixed: SEER2 22.5 • HSPF2 10.25 • EER2 13 • COP 4.3
Electrical & Operating
- Power Supply: 208–230V, 1Ph, 60Hz
- Recommended breaker: 40 A
- Operating Range (Cooling): −13°F to 125°F (−25°C to 52°C)
- Operating Range (Heating): −22°F to 75°F (−30°C to 24°C)
- Airflow: 2,353 CFM
- Sound Pressure: 60 dB(A) (cooling/heating)
Refrigerant Piping
- Liquid Line (O.D.): 1/4″ (6.35 mm)
- Gas Line (O.D.): 3/8″ (9.52 mm)
- Indoor Drain: 5/8″ (15.88 mm)
- Line Lengths: Max 197 ft (60 m) • Min 10 ft (3 m) • Max Height Difference 49 ft (15 m)
Dimensions & Weight
- Net Dimensions (H × W × D): 31-13/16″ × 41-3/16″ × 17-59/64″ (808 × 1046 × 455 mm)
- Package Dimensions (H × W × D): 33-21/32″ × 43-1/2″ × 19-31/64″ (885 × 1105 × 495 mm)
- Net Weight: 152.1 lb (69 kg)
Notes: Specifications and data are subject to change without notice. Actual results may vary with installation and ambient conditions.
Included in This System

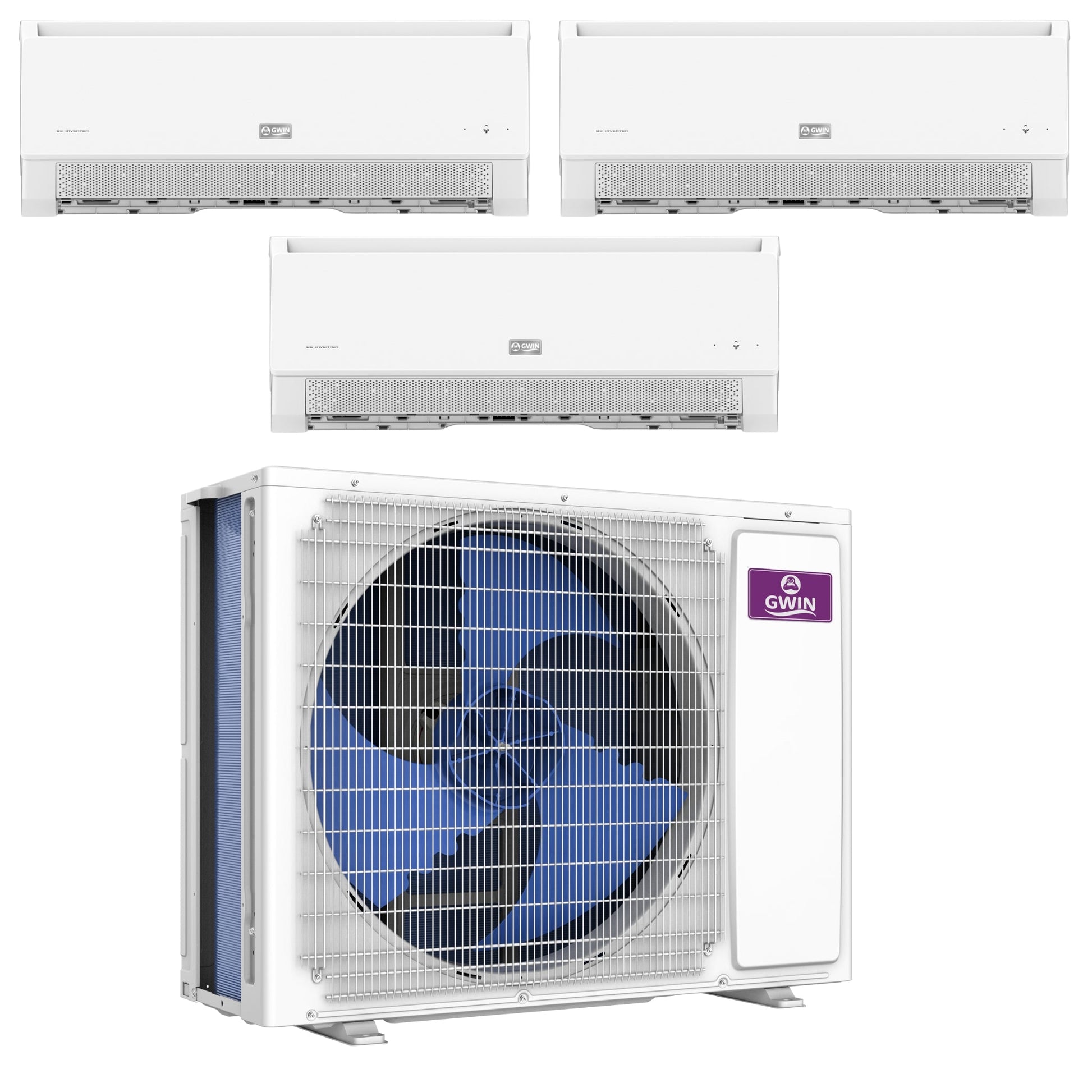

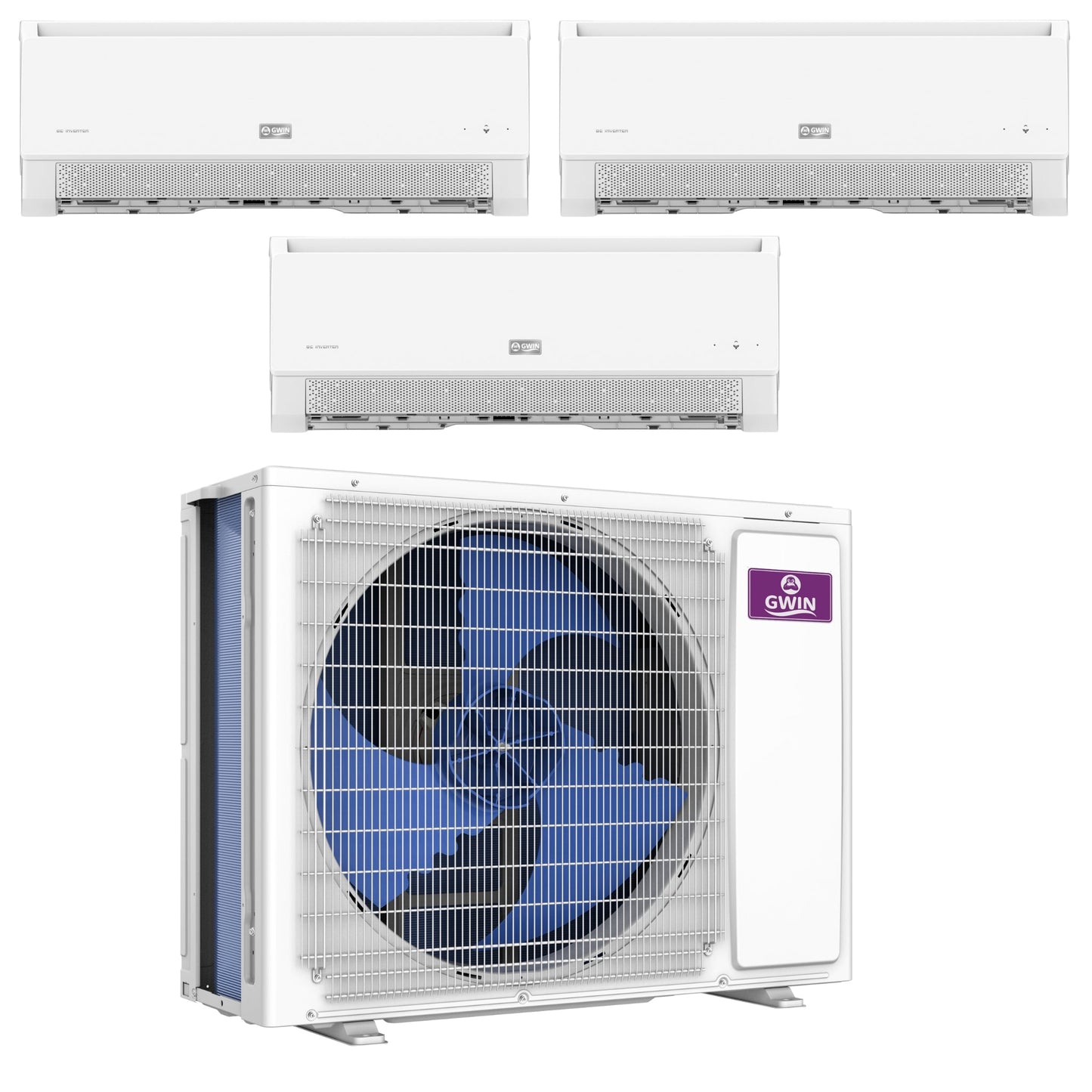

- (1) 24,000 BTU Multi-Zone Outdoor Condenser (GASUM24HPMULO)
- (1) 7,000 BTU Wall-Mount Indoor Air Handler (GAFEB07HP230V1EH)
- (2) 9,000 BTU Wall-Mount Indoor Air Handler (GAFEB09HP230V1EH)
- (3) Wireless Remote Controller
- (3) Installation and User Manual
- (3) 15’ line set
- (3) 15’ communication wire
Note: Whips, disconnects, pads, and other accessories sold separately. Always follow local codes and unit nameplate. Must be installed by someone over the age of 18 and only to their allowed limit that is determined by the license held by the installer. If no license, you must not attempt to charge or commission system. Only qualified personnel are allowed to charge or commission start up.
The Evolution of DIY Mini Splits
GWIN™ Assisted DIY™
"Most DIY mini splits still leave the hardest parts up to you — pressure testing, vacuuming the system, handling refrigerant, or finding your own tech, and even dealing with bulky pre-charged line sets. GWIN™ HVAC changes all of that with Assisted DIY™. The GWIN Assisted DIY 25,000 BTU 22 SEER2 230V Three-Zone Ductless Mini-Split Complete System (24k condenser,7K + 9K + 9K Wall Mount) with 15 foot line set and communication wire with Assisted DIY™ is an evolution over DIY alone and makes GWIN™ a complete DIY mini split system that includes free expert tech support, with a tech included, so you never need special tools, never touch refrigerant, never run a vacuum pump, and never perform a pressure test. Our line sets with our easy connect flare-less fittings, allow for a professional operating system, with a professional look. Which also means no coiled mess and no guesswork — just a straightforward self-install ductless system that goes in like a true DIY HVACproject, backed by professionals every step of the way. Whether you're cooling or heating a garage, basement, bedroom, sunroom, home addition, tiny home, or cabin — GWIN™ HVAC is the ultimate DIY ductless solution with our Assisted DIY™ for homeowners who want to do it themselves, but done right." GWIN™ HVAC is the advanced version of DIY mini splits.
