GWIN Assisted DIY 24,000 BTU 26 SEER2 230V Emperor 22 Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech
GWIN Assisted DIY 24,000 BTU 26 SEER2 230V Emperor 22 Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech
Couldn't load pickup availability
GWIN Assisted DIY 24,000 BTU 26 SEER2 230V Emperor Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set And Communication Wire
The GWIN 24,000 BTU 26 SEER2 230V Emperor Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set And Communication Wire is a powerful, high-efficiency solution for larger spaces that need premium ductless heating and cooling. Designed for open living areas, large garages, workshops, offices, and other demanding single-zone applications, this 24,000 BTU mini-split heat pump system delivers strong year-round comfort with a sleek, modern appearance.

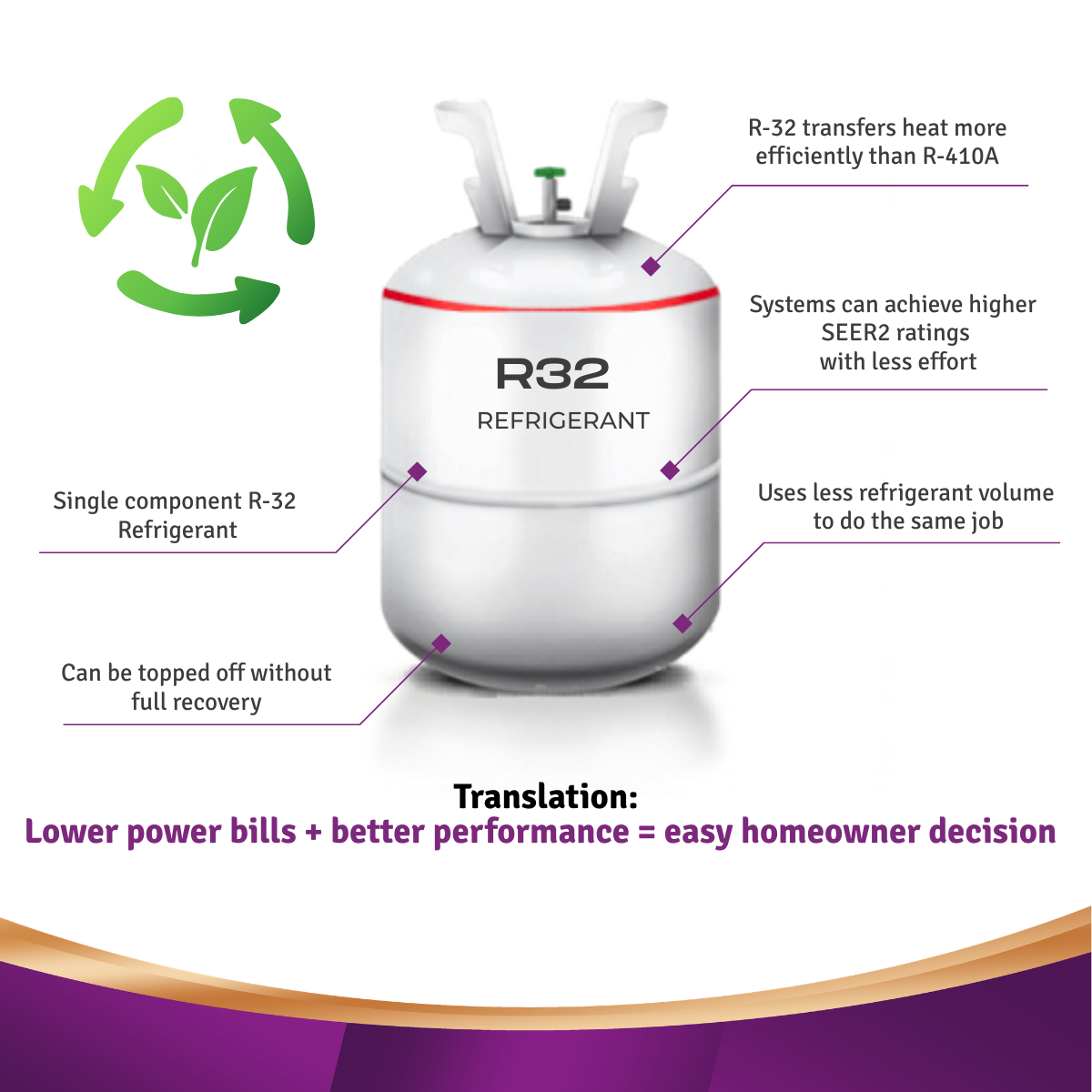

With an impressive 26 SEER2 rating, this high efficiency 230V ductless mini-split is built to help lower energy consumption while maintaining reliable performance. It uses R32 refrigerant for improved operating efficiency and reduced environmental impact, and it comes with a 15 foot line set and communication wire for a more complete installation package.
High-Capacity Comfort for Large Rooms
The Emperor Series is made for homeowners who want strong output, dependable heating and cooling, and advanced comfort technology. This 24,000 BTU single zone mini-split is ideal for spaces that need more coverage without sacrificing quiet operation or efficiency.
Key Features
- 24,000 BTU ductless mini-split system for large single-zone applications
- 26 SEER2 efficiency for high-performance energy savings
- 230V power for dependable operation
- Blue Fin technology on both indoor and outdoor units
- Auto Clean function for cleaner internal operation
- Dehumidification mode for humidity control
- I-Feel function for more personalized comfort
- Self Diagnosis support for easier maintenance awareness
- Multiple fan speeds for customized airflow
- Automatic voltage adaptation and low voltage startup
- Swing louver control for more even air distribution
- Quiet performance for everyday comfort
- Wi-Fi Included (Factory Installed)
- Low ambient cooling down to -20°F (range: -20°F to 122°F)
- Low ambient heating down to -22°F (range: -22°F to 86°F)
- Indoor and outdoor coil: Copper tube / aluminum fin
- Blue fin - 500 hours salt spray tested
Other Features
- Basepan with Electric Heater
- Intelligent Defrosting
- Intelligent Preheating
- Low Voltage Startup
- Memory / Power Failure Recovery
- Self Diagnosis
- No Auxiliary Electrical Heater
- No Ventilation (Outdoor Air)
Built for Year-Round Reliability
This Emperor model operates in a wide range of conditions with a cooling range of -20°F to 122°F and a heating range of -22°F to 86°F. That makes it a strong fit for homeowners looking for a 24,000 BTU cold weather mini-split heat pump with high efficiency and dependable seasonal performance.
Assisted DIY Installation Advantage
GWIN is built for homeowners and installers who want the freedom of a full Assisted DIY install with full warranty while still having expert support available from day one. This system is positioned as the first Assisted DIY system to come with a tech, giving buyers added confidence during installation and startup.
- Professional commercial grade compressors and control boards
- Flareless brassless connection approach
- Cut-to-length line set installation flexibility
- Comes with GWIN tech included — described as the first system to ever come with a tech *only to commission system
- No worries in your install with a GWIN Tech included
- Full Assisted DIY install with full warranty

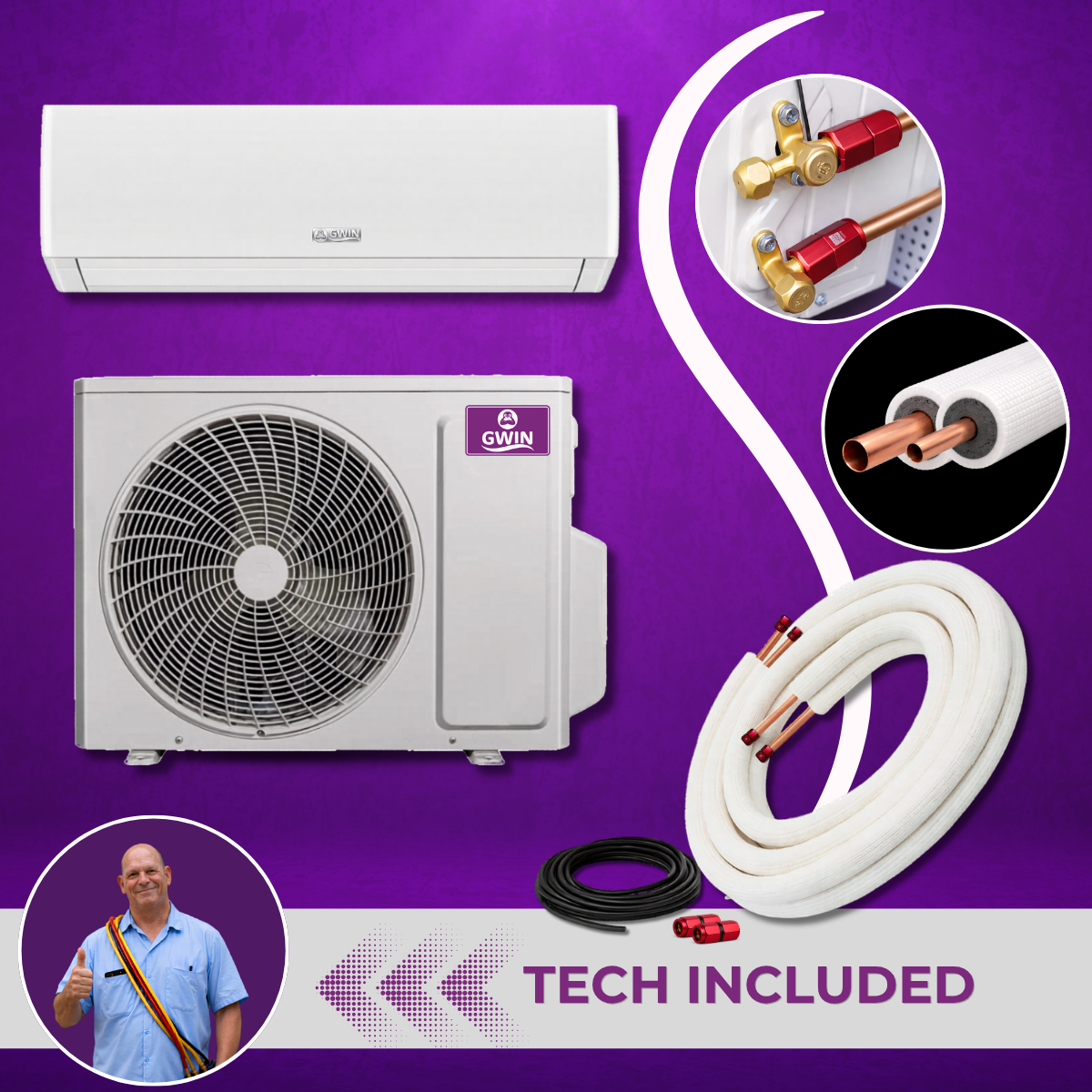

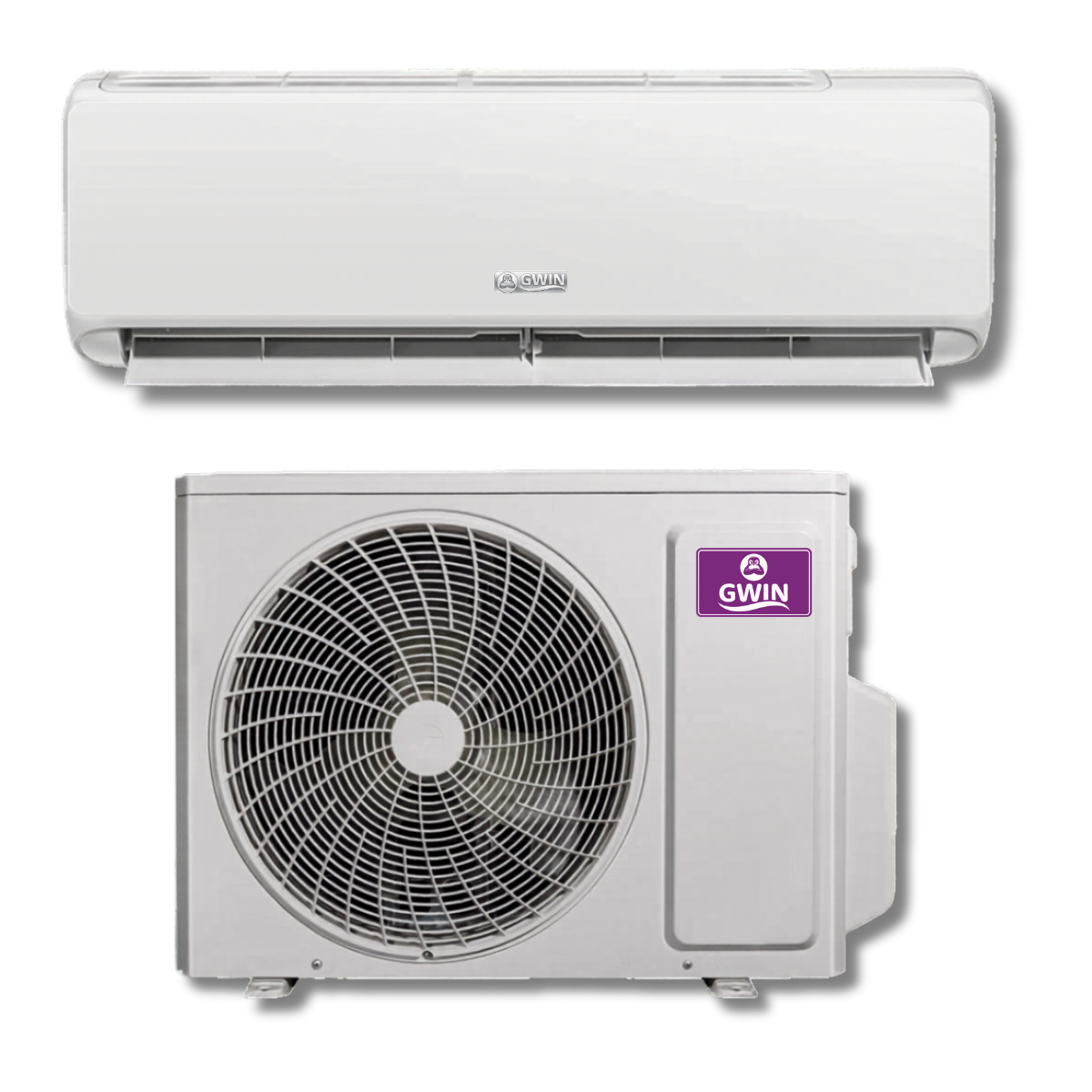

Included in This Complete System

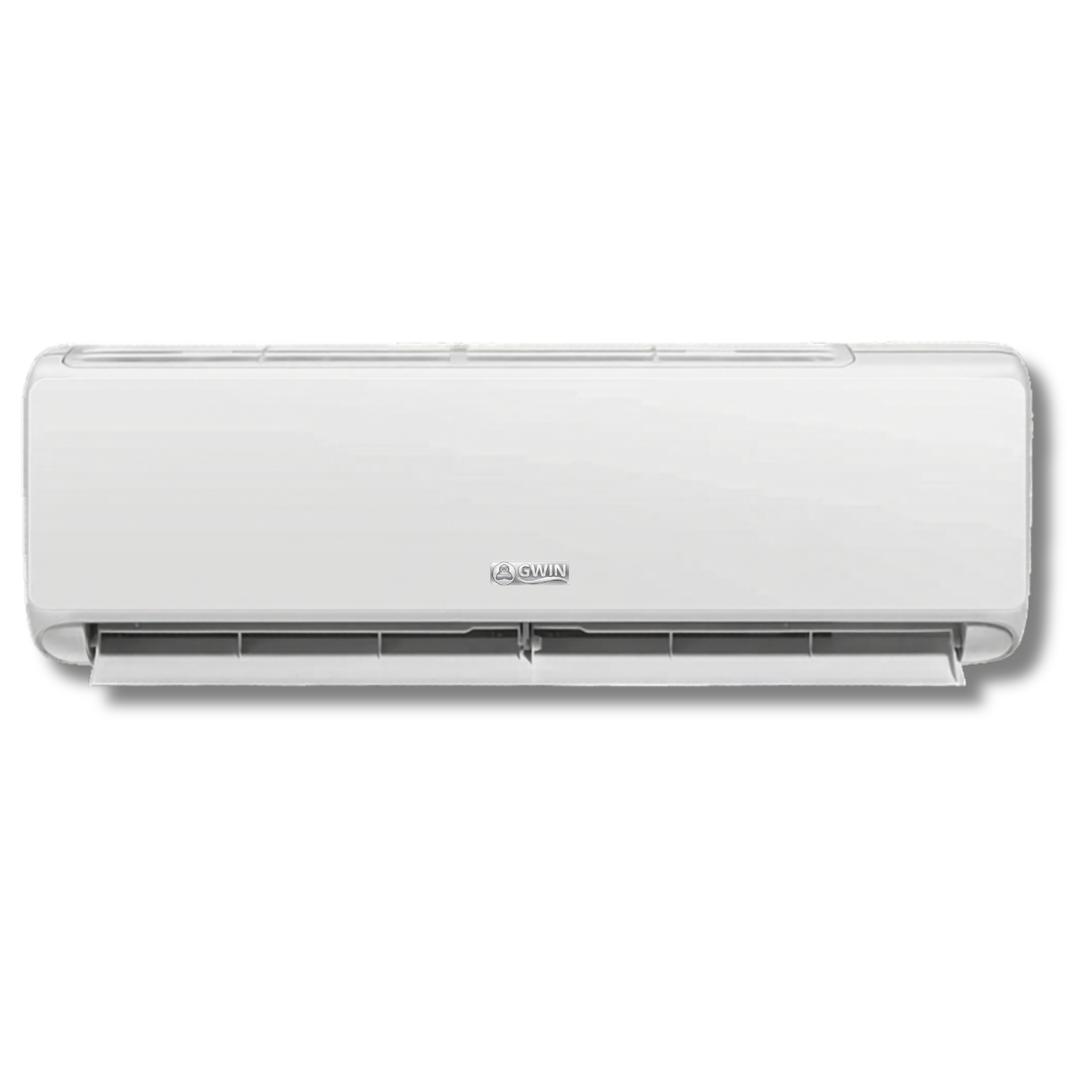

- GWIN 24,000 BTU Emperor indoor unit

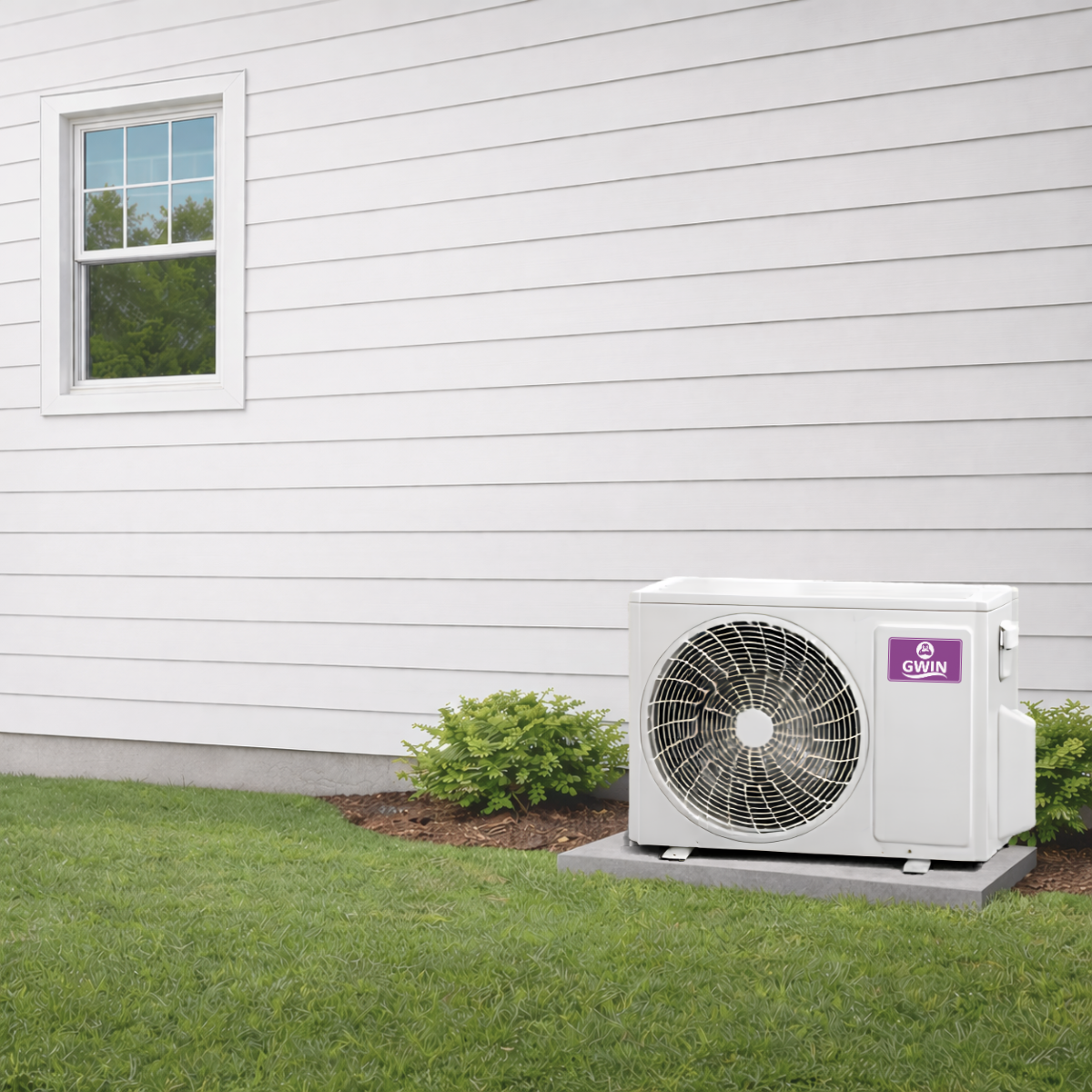

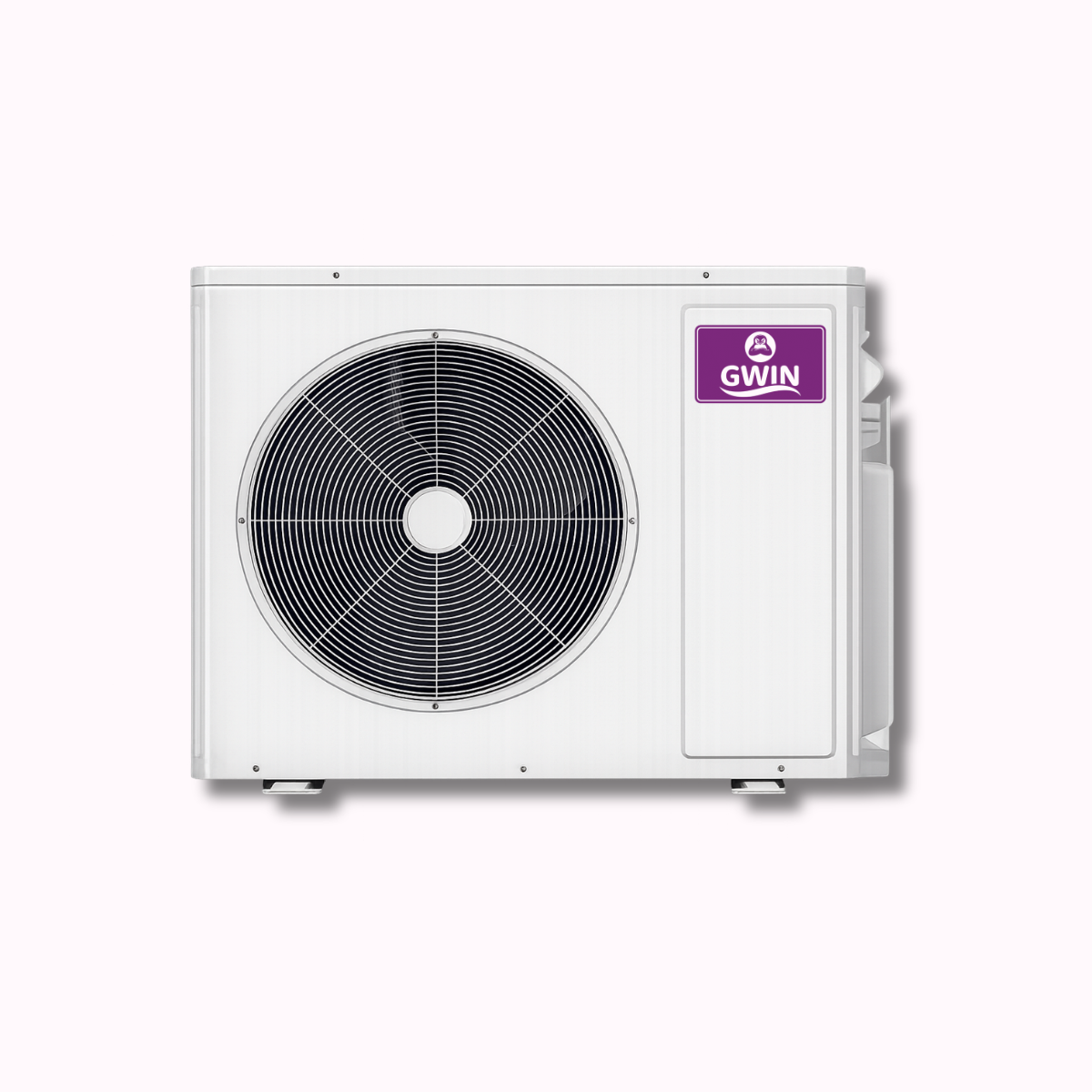

- Matching outdoor condenser

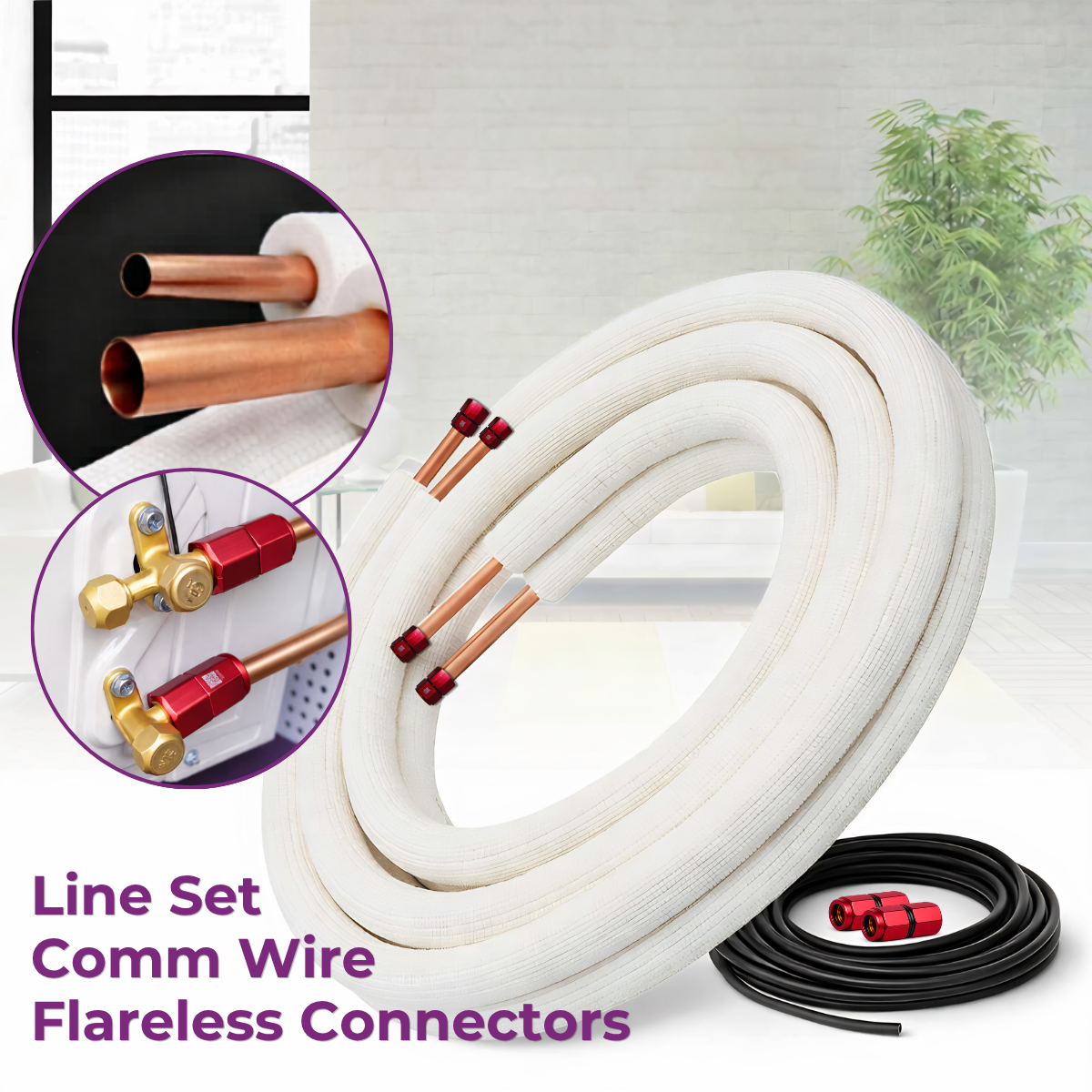

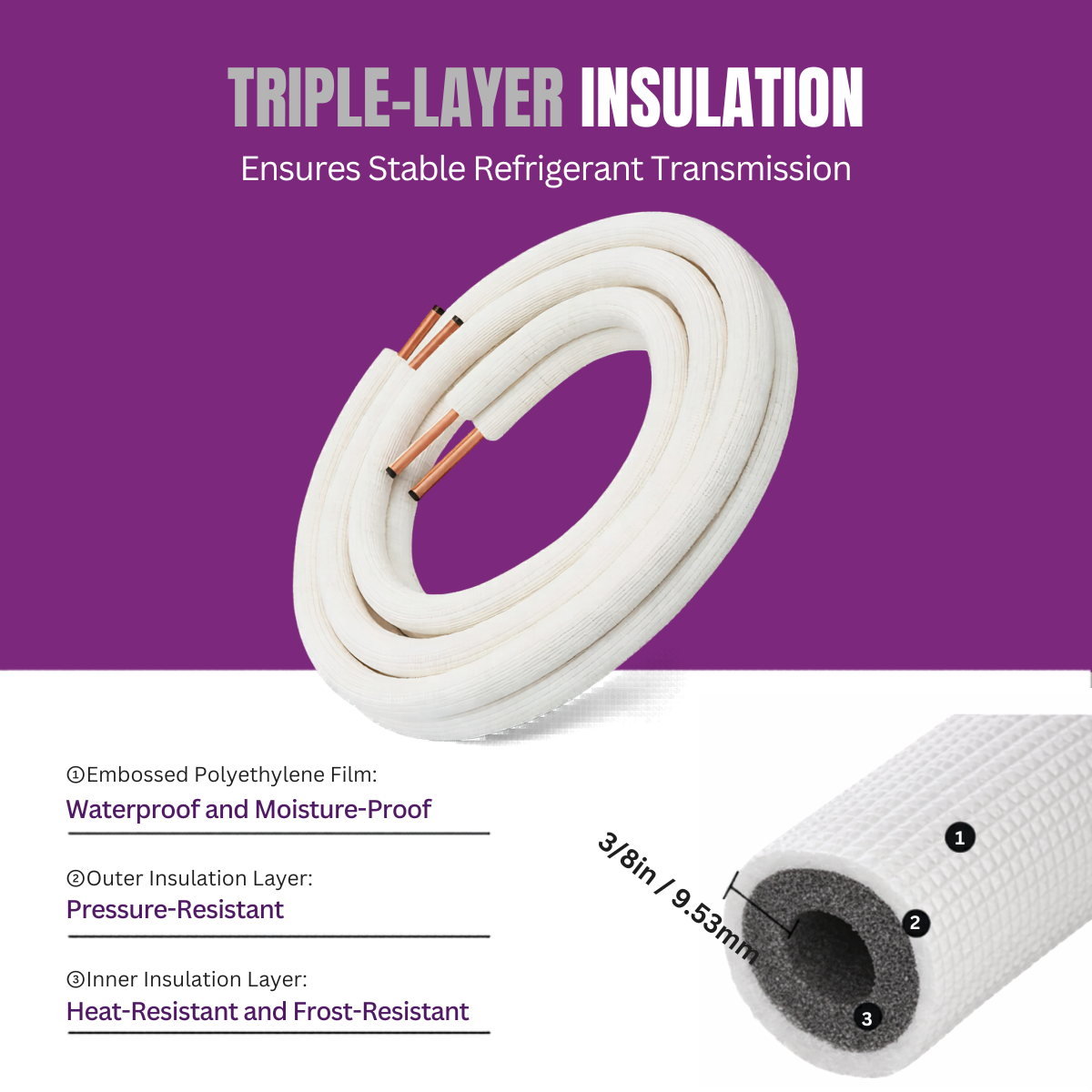

- 15 foot line set
- Communication wire
- Remote comfort control features
Best Applications
This 24,000 BTU 230V single zone ductless mini-split system is ideal for living rooms, open-concept spaces, garages, workshops, additions, offices, and other larger areas where efficient heating and cooling are needed without traditional ductwork.
System Information
| System Type | Heat Pump |
| Indoor Model | EMPR24HP230V1R32AH |
| Outdoor Model | EMPR24HP230V1R32AO |
| Remote Controller | YBE1FBF |
| Optional Wired Controller | XE71 |
Performance Specifications
| Cooling Capacity (Min - Max) | 3,340 - 28,660 BTU/h |
| Rated Cooling Capacity @ 95°F | 22,000 BTU/h |
| Heating Capacity (Min - Max) | 3,300 - 31,390 BTU/h |
| Rated Heating Capacity @ 47°F | 24,000 BTU/h |
| Rated Heating Capacity @ 17°F | 20,000 BTU/h |
| Rated Heating Capacity @ 5°F | 16,000 BTU/h |
| SEER2 | 26.0 |
| EER2 | 13.65 |
| HSPF2 | 10.0 |
| COP @ 5°F | 1.8 |
| Cooling Temperature Range | -20°F to 122°F |
| Heating Temperature Range | -22°F to 86°F |
| Refrigerant Type | R32 |
Indoor Unit Specifications
| Model | EMPR24HP230V1R32AH |
| Air Flow (Min - Max) | 383 - 736 CFM |
| Sound Pressure Level (Min - Max) | 34 - 52 dB(A) |
| Dehumidification | 4.23 pt/hr |
| Unit Dimensions (W x H x D) | 42-21/64 x 13-7/64 x 9-11/16 in. |
| Package Dimensions (W x H x D) | 44-39/64 x 16-19/64 x 13-7/64 in. |
| Net Weight | 35.3 lbs |
| Gross Weight | 41.9 lbs |
Outdoor Unit Specifications
| Model | EMPR24HP230V1R32AO |
| Compressor Type | GREE G20 / Single Cylinder / 1-Stage Inverter |
| Sound Pressure Level | 58 dB(A) |
| Unit Dimensions (W x H x D) | 37-23/32 x 25-63/64 x 15-53/64 in. |
| Package Dimensions (W x H x D) | 40-5/8 x 29-1/64 x 17-61/64 in. |
| Net Weight | 92.6 lbs |
| Gross Weight | 102.5 lbs |
Refrigerant Piping
| Refrigerant Charge | 42.3 oz |
| Additional Charge | 0.4 oz/ft |
| Line Set Size (Liquid - Gas) | 1/4 - 5/8 in. |
| Pre-Charge Length | 25 ft |
| Pipe Length (Min - Max) | 10 - 131 ft |
| Max Pipe Elevation | 82 ft |
Electrical
| Power Supply | 208-230V / 1Ph / 60Hz (Powered by the Outdoor Unit) |
| Voltage Range | 187 - 253 VAC |
| Rated Current - Cooling | 13 A |
| Rated Current - Heating | 15.5 A |
| MOCP | 30 A |
| MCA | 22 A |
| Main Power Wire Size | Per Local Code |
| Interconnecting Wire Size | 14 / 4 AWG |
Remote Controller Functions
- Auto Clean
- Auto Mode
- Auto Fan
- Auto Swing (Horizontal Auto Swing)
- Auto Swing - 180° (Vertical Auto Swing)
- Clock
- Dry Mode
- Dry Anti-Mildew (X-Fan) Mode
- Energy Saving Mode
- Dirty Filter Alert
- Fan Speed Control
- I Feel Function
- Privacy Lock
- Quiet Mode
- Room Temperature Display
- Sleep Mode
- 3 Sleep Mode Options
- Timer Mode
- Turbo Mode
- Display On/Off Control
- Freeze Guard Mode
- Power Failure Mode
- Humidity Control
Indoor Unit Dimensions (Unit: inch)
External Dimensions
- W: 42 21/64
- H: 13 7/64
- D: 9 11/16
Package Dimensions
- W: 44 39/64
- H: 16 19/64
- D: 13 7/64
Outdoor Unit Dimensions (Unit: inch)
External Dimensions
- W: 37 23/32
- H: 25 63/64
- D: 15 53/64
Package Dimensions
- W: 40 5/8
- H: 29 1/64
- D: 17 61/64
Minimum Clearance Requirements
Indoor Unit
- Space to the ceiling: at least 3 inches
- Space to the wall: at least 2 inches
- Space to the floor: at least 48 inches
- Space to the obstruction: at least 48 inches
Outdoor Unit
- Space to the obstruction (top): at least 12 inches
- Space to the obstruction (side): at least 6 inches
- Space to the wall: at least 6 inches
- Space to the obstruction (front): at least 24 inches
- Space to the obstruction (other side): at least 6 inches
Note: If the bottom of the unit is free of airflow obstructions similar to the mounting bracket figure, the clearance to the wall on the back can be reduced to 3 inches. Please consult submittal for image.
The Evolution of DIY Mini Splits
GWIN™ Assisted DIY™
"Most DIY mini splits still leave the hardest parts up to you — pressure testing, vacuuming the system, handling refrigerant, or finding your own tech, and even dealing with bulky pre-charged line sets. GWIN™ HVAC changes all of that with Assisted DIY™. The GWIN Assisted DIY 24,000 BTU 26 SEER2 230V Emperor 22 Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech with Assisted DIY™ is an evolution over DIY alone and makes GWIN™ a complete DIY mini split system that includes free expert tech support, with a tech included, so you never need special tools, never touch refrigerant, never run a vacuum pump, and never perform a pressure test. Our line sets with our easy connect flare-less fittings, allow for a professional operating system, with a professional look. Which also means no coiled mess and no guesswork — just a straightforward self-install ductless system that goes in like a true DIY HVACproject, backed by professionals every step of the way. Whether you're cooling or heating a garage, basement, bedroom, sunroom, home addition, tiny home, or cabin — GWIN™ HVAC is the ultimate DIY ductless solution with our Assisted DIY™ for homeowners who want to do it themselves, but done right." GWIN™ HVAC is the advanced version of DIY mini splits.
