GWIN Assisted DIY 12,000 BTU 19 SEER2 230V King 13 Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech
GWIN Assisted DIY 12,000 BTU 19 SEER2 230V King 13 Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech
Couldn't load pickup availability
GWIN Assisted DIY 12,000 BTU 19 SEER2 230V King Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech
The GWIN 12,000 BTU 19 SEER2 230V King Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech is a compact and efficient heating and cooling solution for bedrooms, offices, studios, and other small spaces. Designed for dependable comfort and easy everyday use, this 230V ductless mini-split system offers efficient inverter-driven performance in a sleek wall-mounted design.
With a 19 SEER2 rating, this 12,000 BTU mini-split heat pump helps reduce energy consumption while maintaining more stable temperatures indoors. It uses R32 refrigerant for enhanced energy efficiency and a lower environmental impact, and it includes a 15 foot line set and communication wire for added installation convenience.
Efficient Comfort for Smaller Rooms
This King Series system is a strong option for smaller residential rooms and similar single-zone applications where simple, efficient comfort is the goal. Its inverter-based operation helps reduce cycling and supports a more consistent indoor environment.
Key Features
- 12,000 BTU single zone ductless mini-split for small spaces
- 19 SEER2 efficiency for energy-conscious performance
- 230V operation for compatible standard-voltage applications
- Wi-Fi Included
- Low ambient cooling down to 0°F (range: 0°F to 118°F)
- Low ambient heating down to -13°F (range: -13°F to 75°F)
- Indoor and outdoor coil: Copper tube / aluminum fin
- Blue Colored Fin - 500 Hrs Salt Spray Tested
- Basepan with electric heater
- Compressor with electric heater
- Intelligent defrosting
- Force defrosting
- Intelligent preheating
- Low voltage startup
- Memory / power failure recovery
- Self diagnosis
- Multiple fan speeds
- Indoor unit display
- A2L leak detection sensor (indoor) factory installed
- Quiet operation
Reliable Cold Weather Performance
The King Single Zone series is built for dependable heating operation in colder conditions, with a heating range down to -13°F and up to 75°F. This makes it a practical choice for buyers seeking a 12,000 BTU cold weather mini-split heat pump.
Assisted DIY Installation Advantage
GWIN is built for homeowners and installers who want the freedom of a full Assisted DIY install with full warranty while still having expert support available from day one.
- Professional commercial grade compressors and control boards
- Flareless brassless connection approach
- Cut-to-length line set installation flexibility
- Comes with GWIN tech included
- Full Assisted DIY install with full warranty

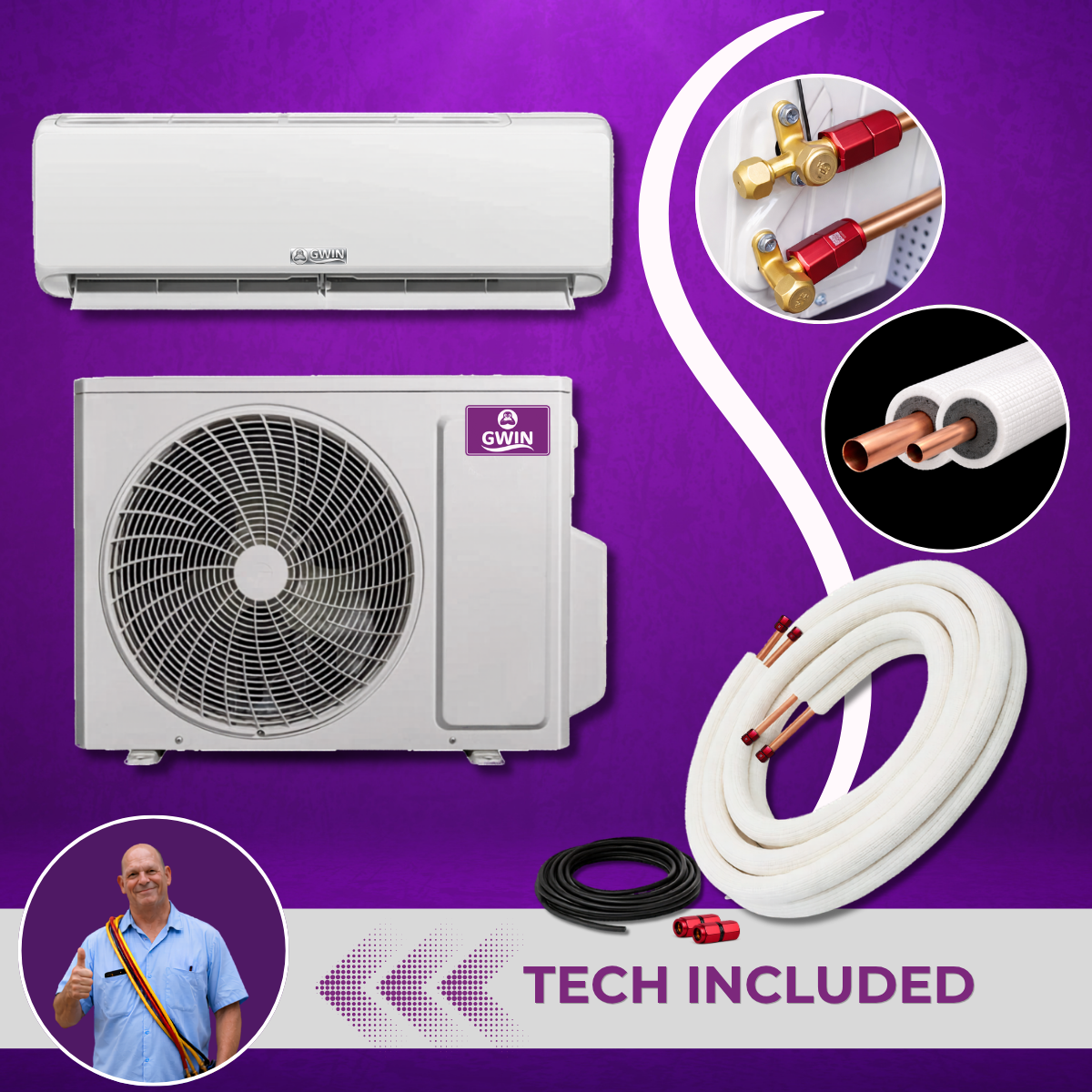

Included in This Complete System

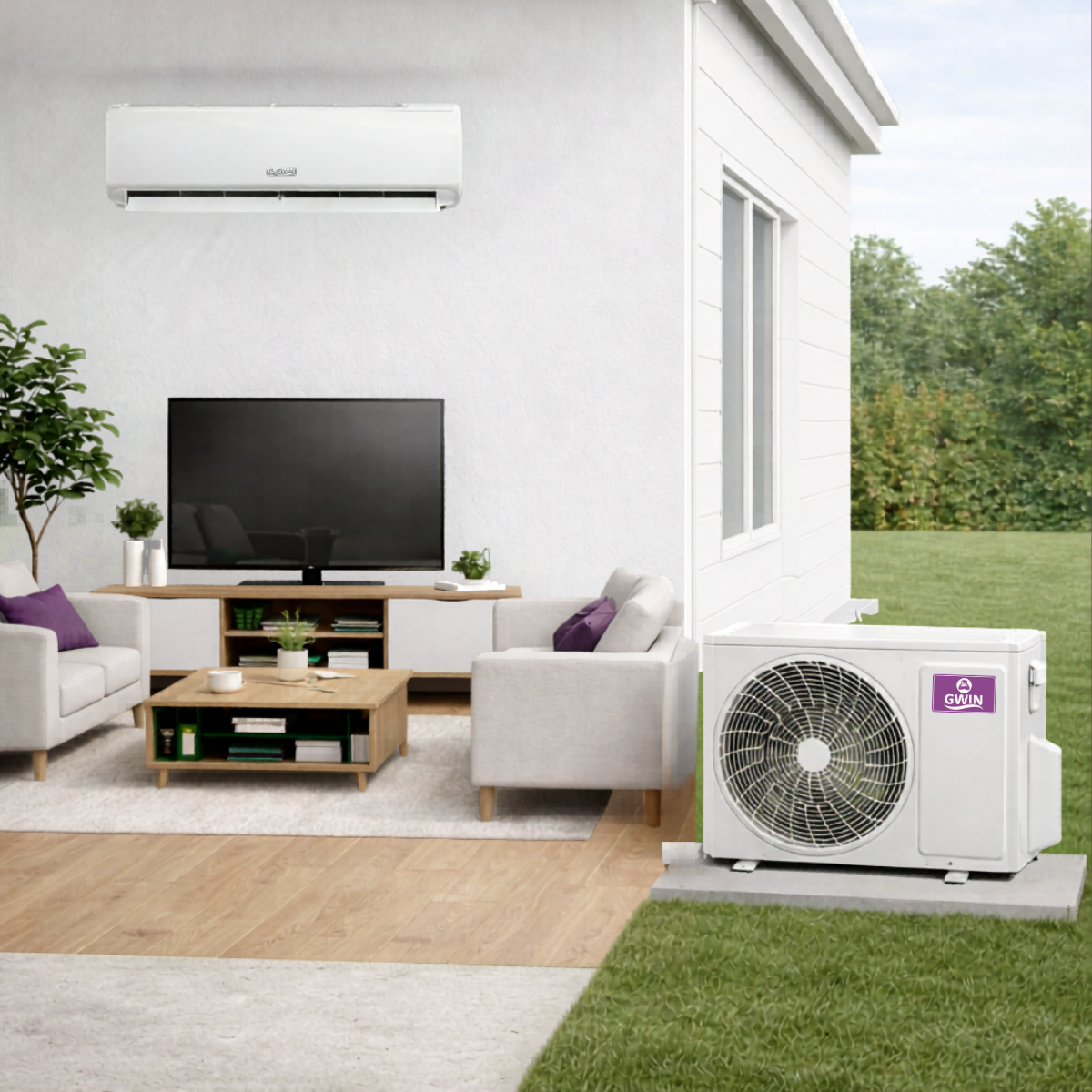

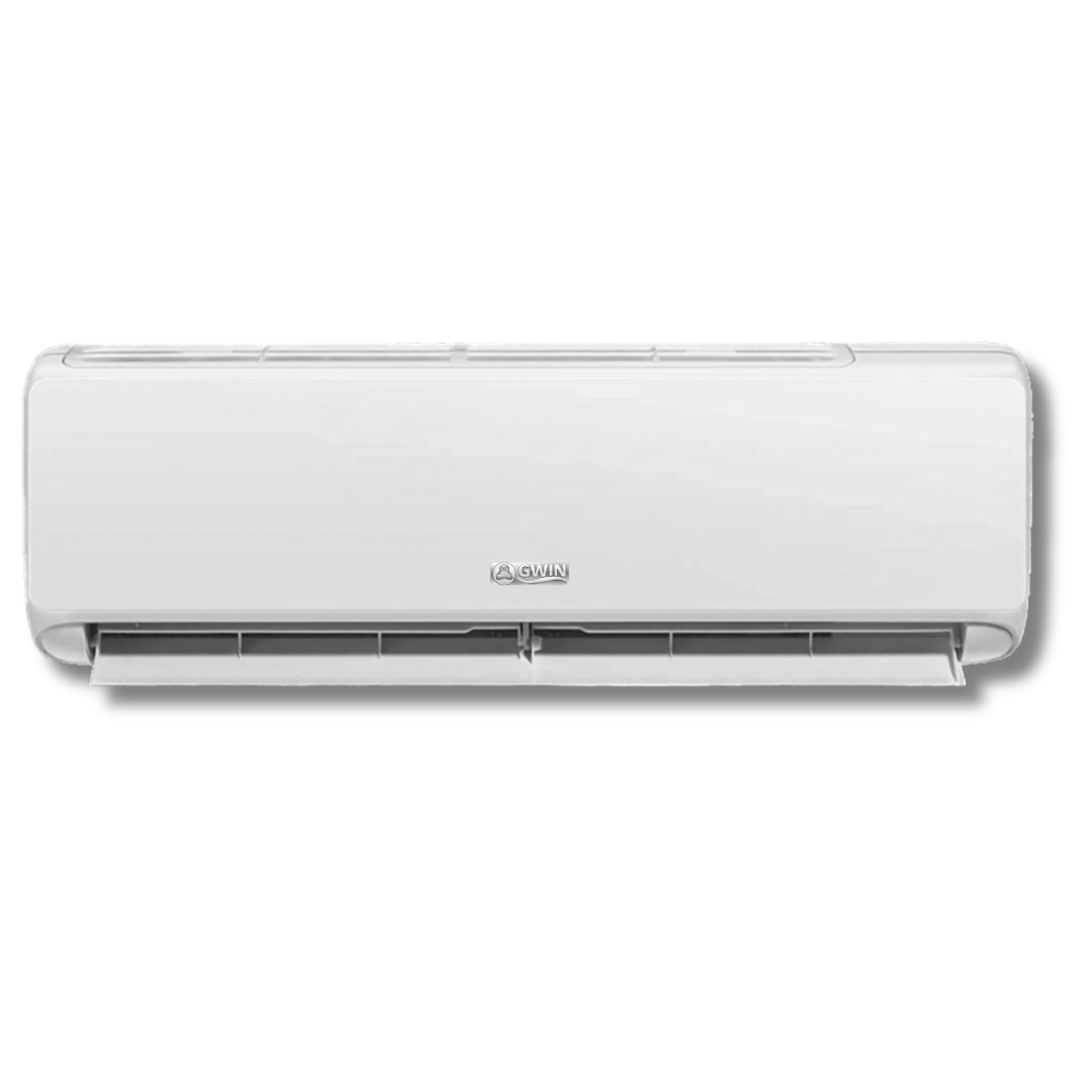

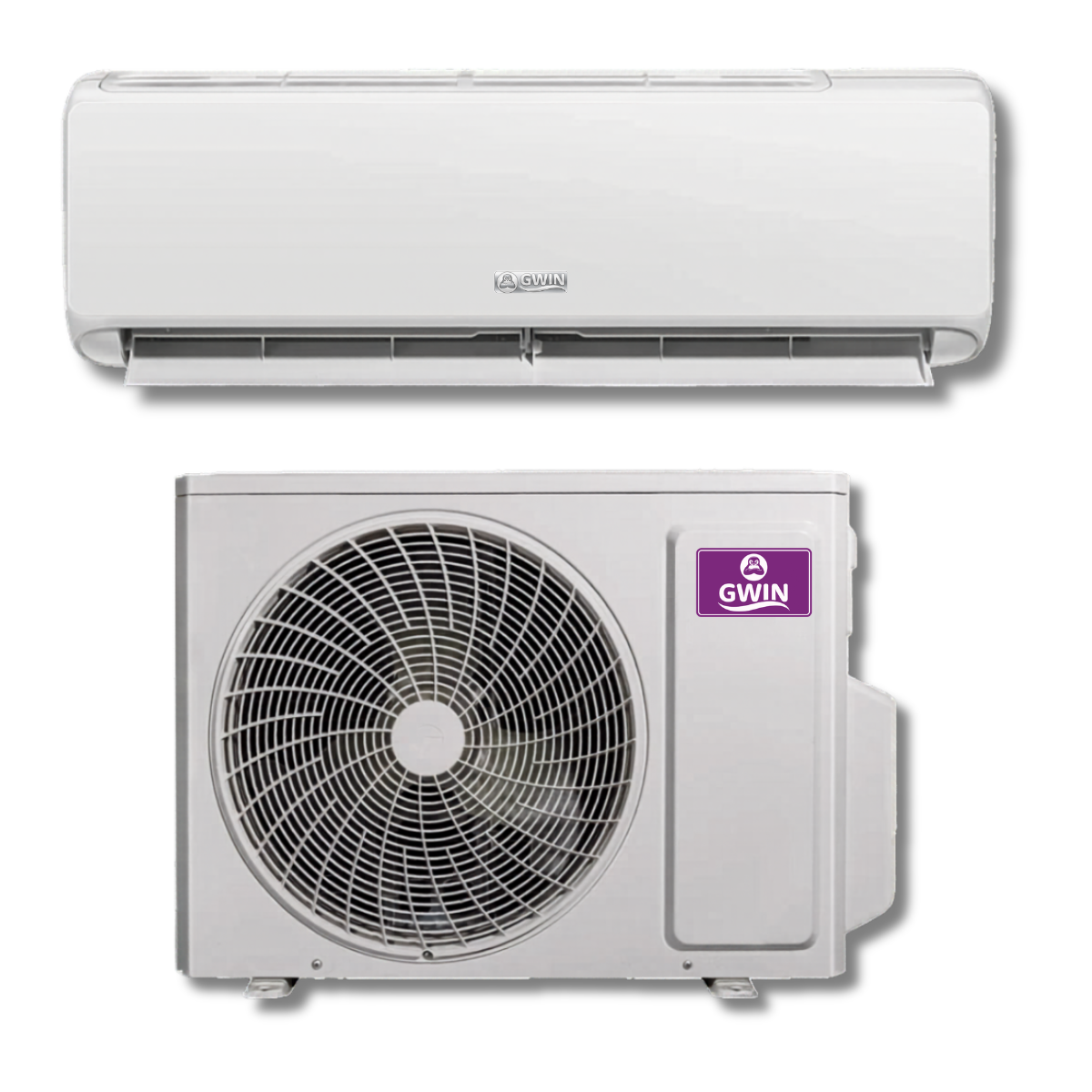

- GWIN 12,000 BTU King indoor air handler

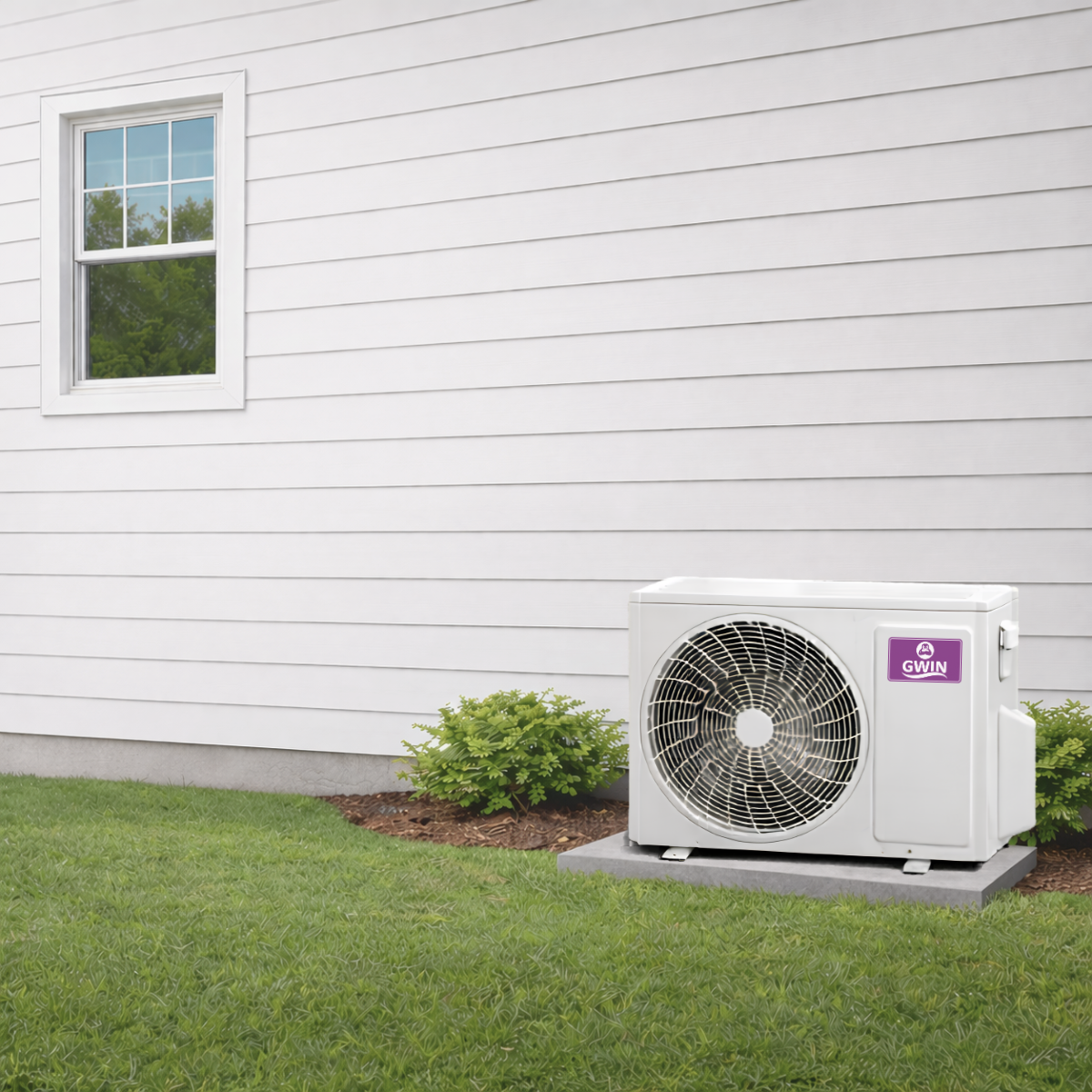

- Matching outdoor condenser

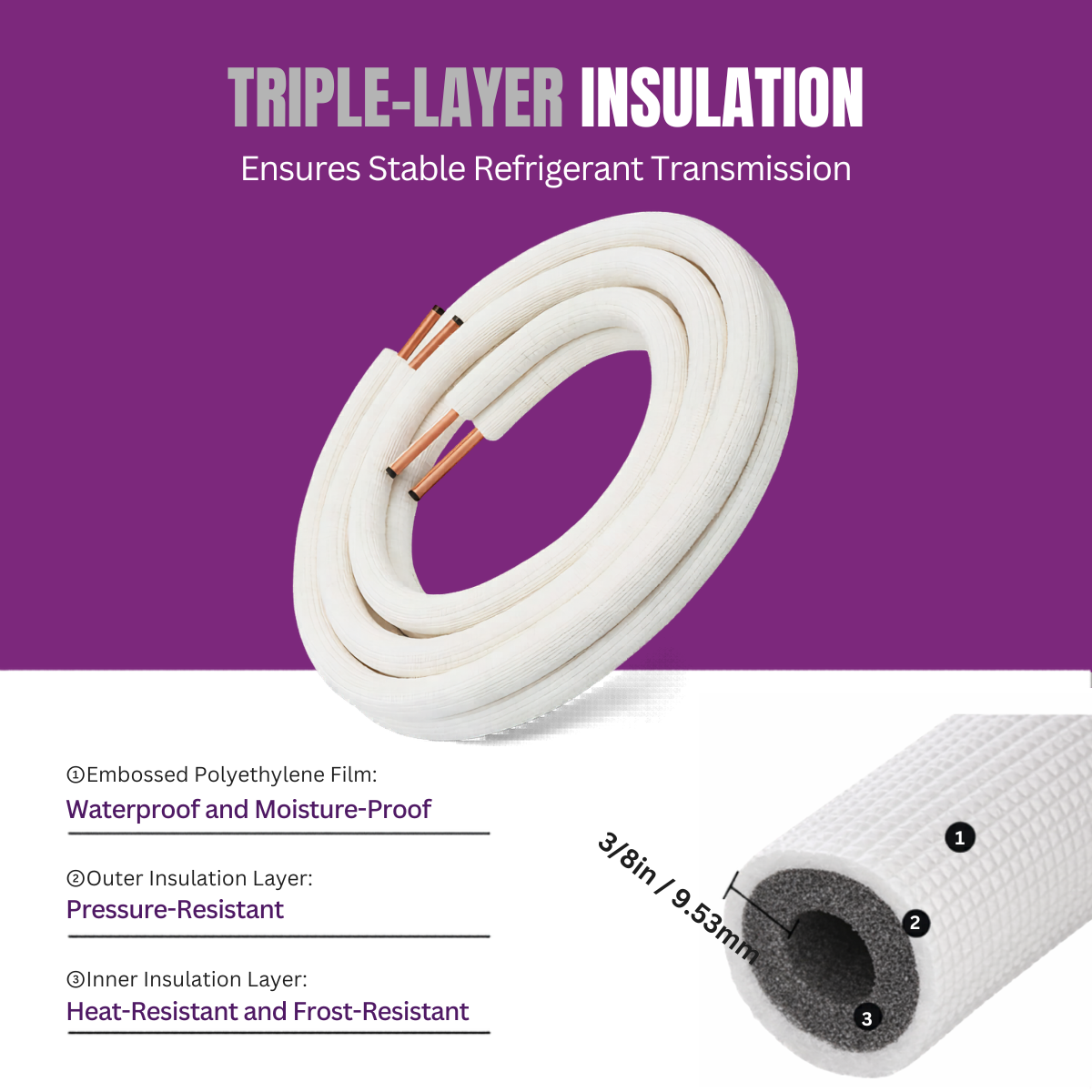

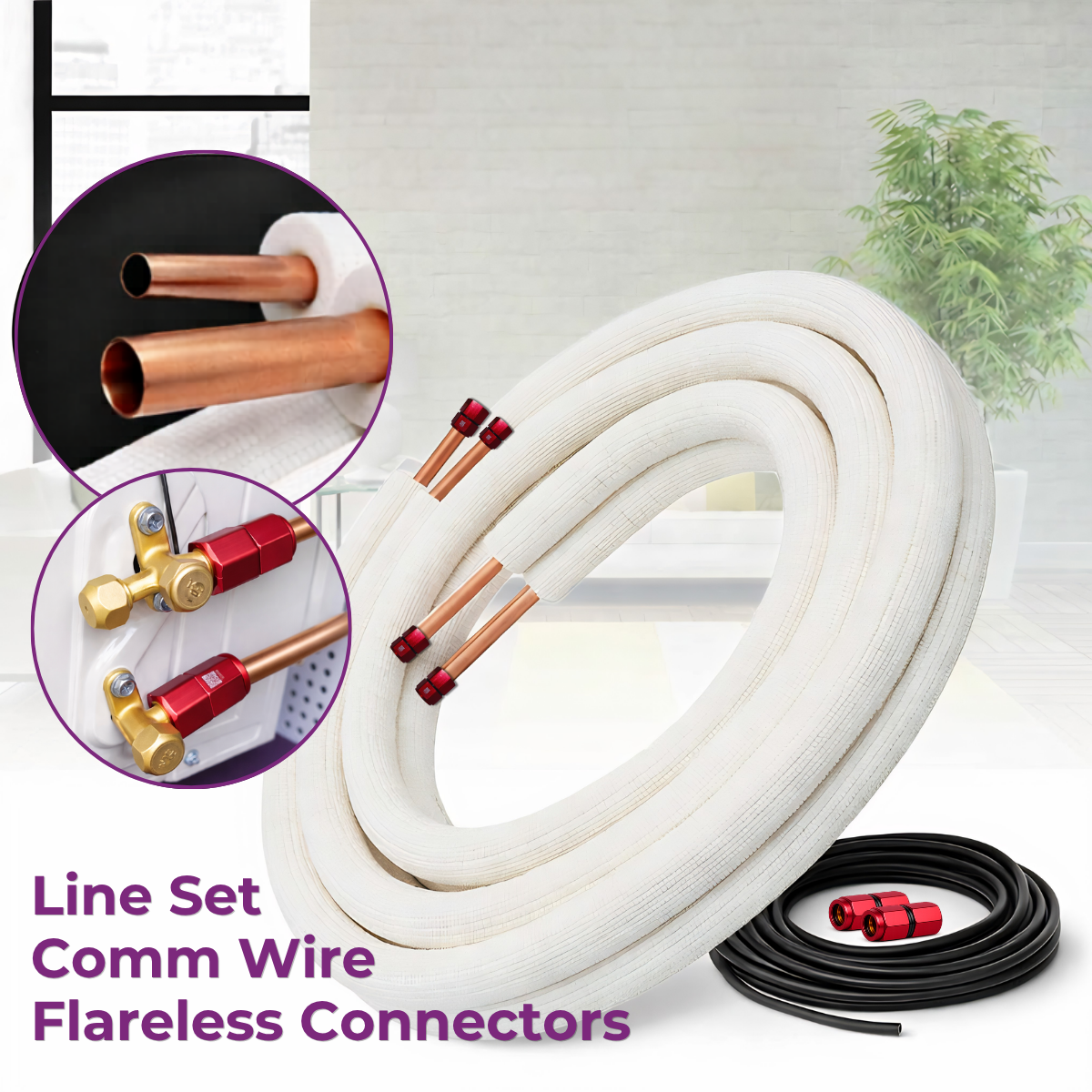

- 15 foot line set
- Communication wire

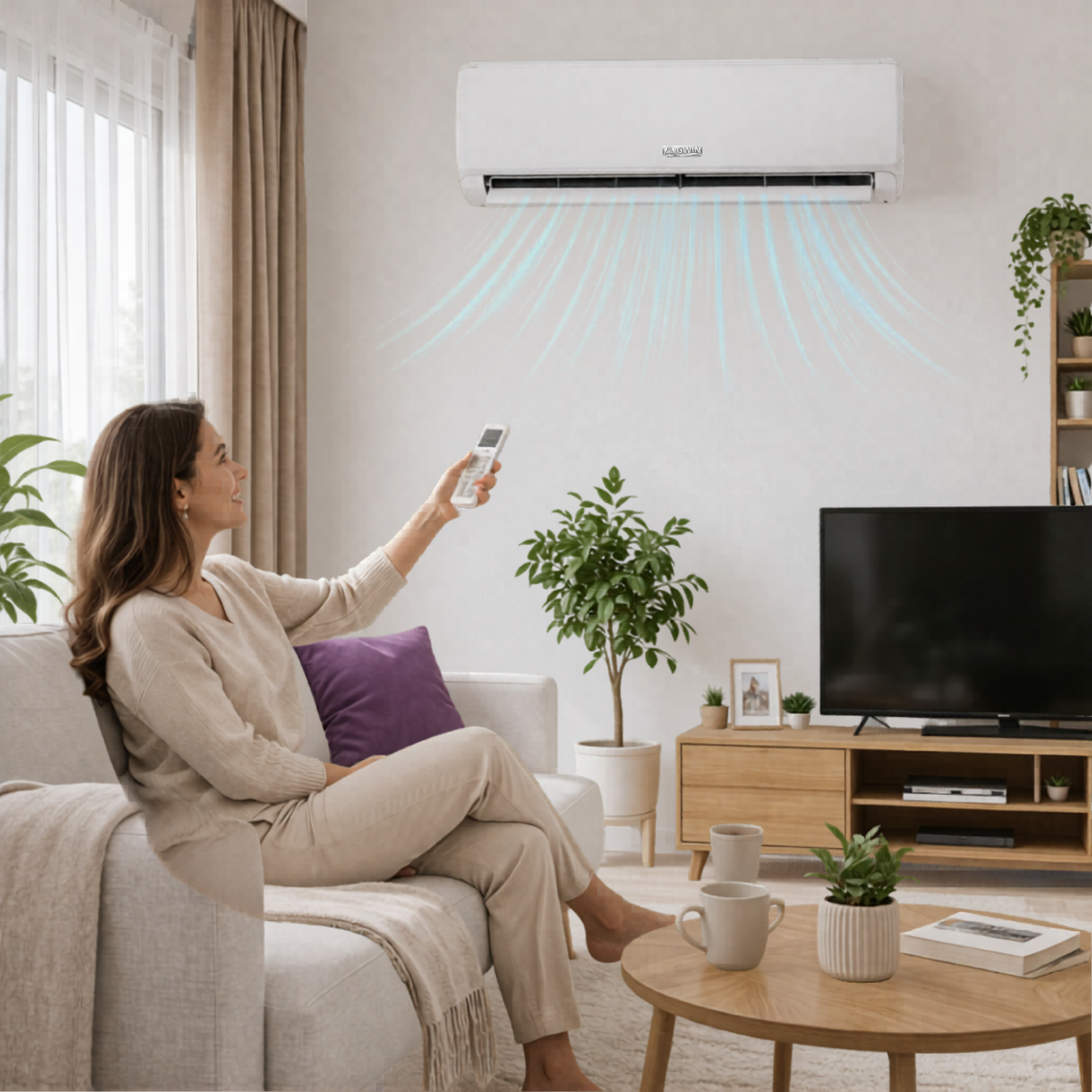

- Remote comfort functions
Ideal Applications

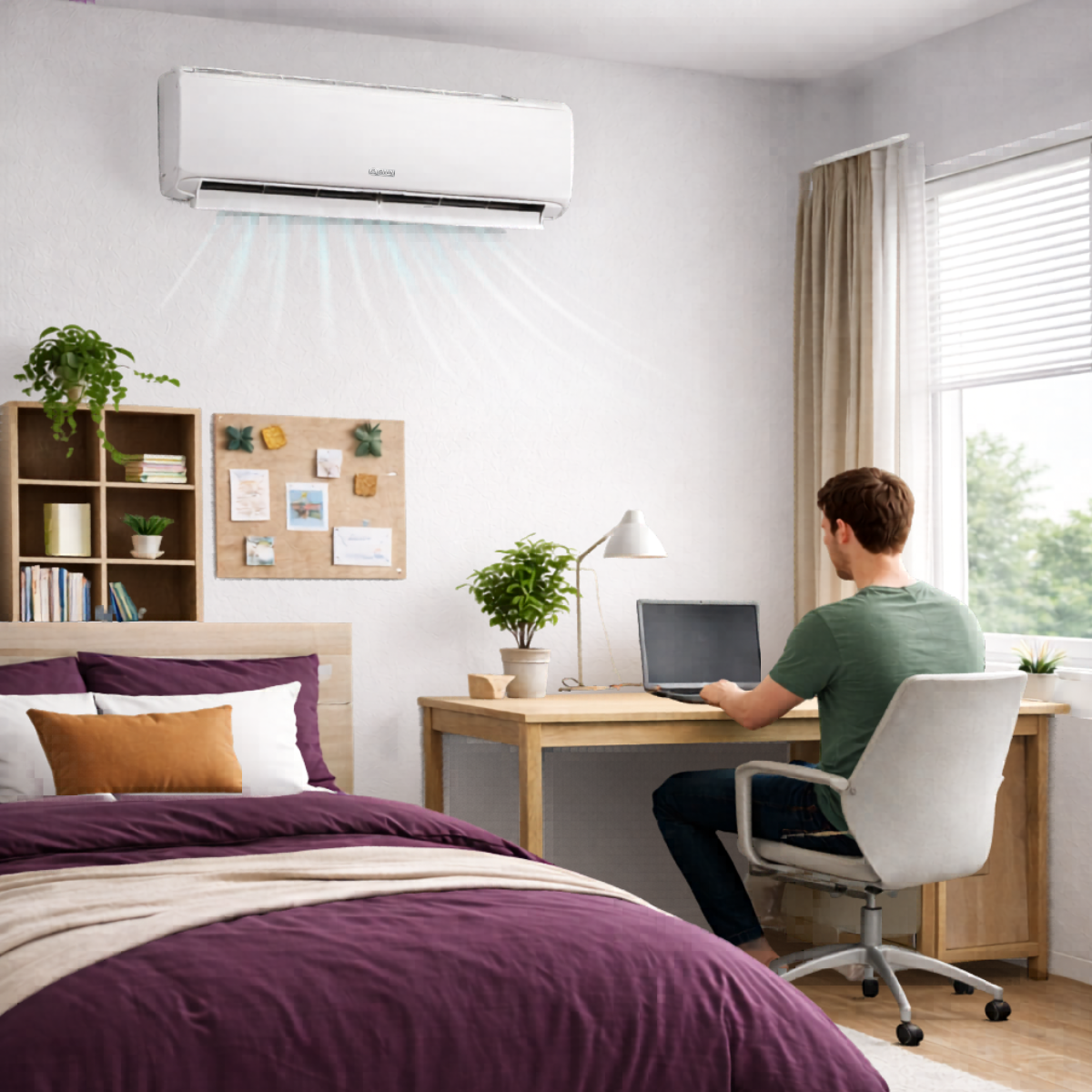

This 12,000 BTU 230V ductless mini-split complete system is ideal for bedrooms, offices, small dens, guest rooms, and similar spaces.
System Information
| System Type | Heat Pump |
| Indoor Model | KING12HP230V1R32AH |
| Outdoor Model | KING12HP230V1R32AO |
| Remote Controller | YBE1FB1F |
| Optional Wired Controller | XE71 |
Performance Specifications
| Cooling Capacity (Min - Max) | 3,070 - 13,300 BTU/h |
| Rated Cooling Capacity @ 95°F | 12,000 BTU/h |
| Heating Capacity (Min - Max) | 3,070 - 14,600 BTU/h |
| Rated Heating Capacity @ 47°F | 12,000 BTU/h |
| Rated Heating Capacity @ 17°F | 9,700 BTU/h |
| Rated Heating Capacity @ 5°F | 9,100 BTU/h |
| SEER2 | 19.0 |
| EER2 | 9.75 |
| HSPF2 | 8.5 |
| COP @ 5°F | 1.75 |
| Cooling Temperature Range | 0°F to 118°F |
| Heating Temperature Range | -13°F to 75°F |
| Refrigerant Type | R32 |
Indoor Unit Specifications
| Model | KING12HP230V1R32AH |
| Air Flow (Min - Max) | 182 - 424 CFM |
| Sound Pressure Level (Min - Max) | 27 - 47 dB(A) |
| Dehumidification | 2.96 pt/hr |
| Unit Dimensions (W x H x D) | 32-7/8 x 10-53/64 x 7-7/8 in. |
| Package Dimensions (W x H x D) | 35-15/64 x 13-37/64 x 10-43/64 in. |
| Net Weight | 19.8 lbs |
| Gross Weight | 24.3 lbs |

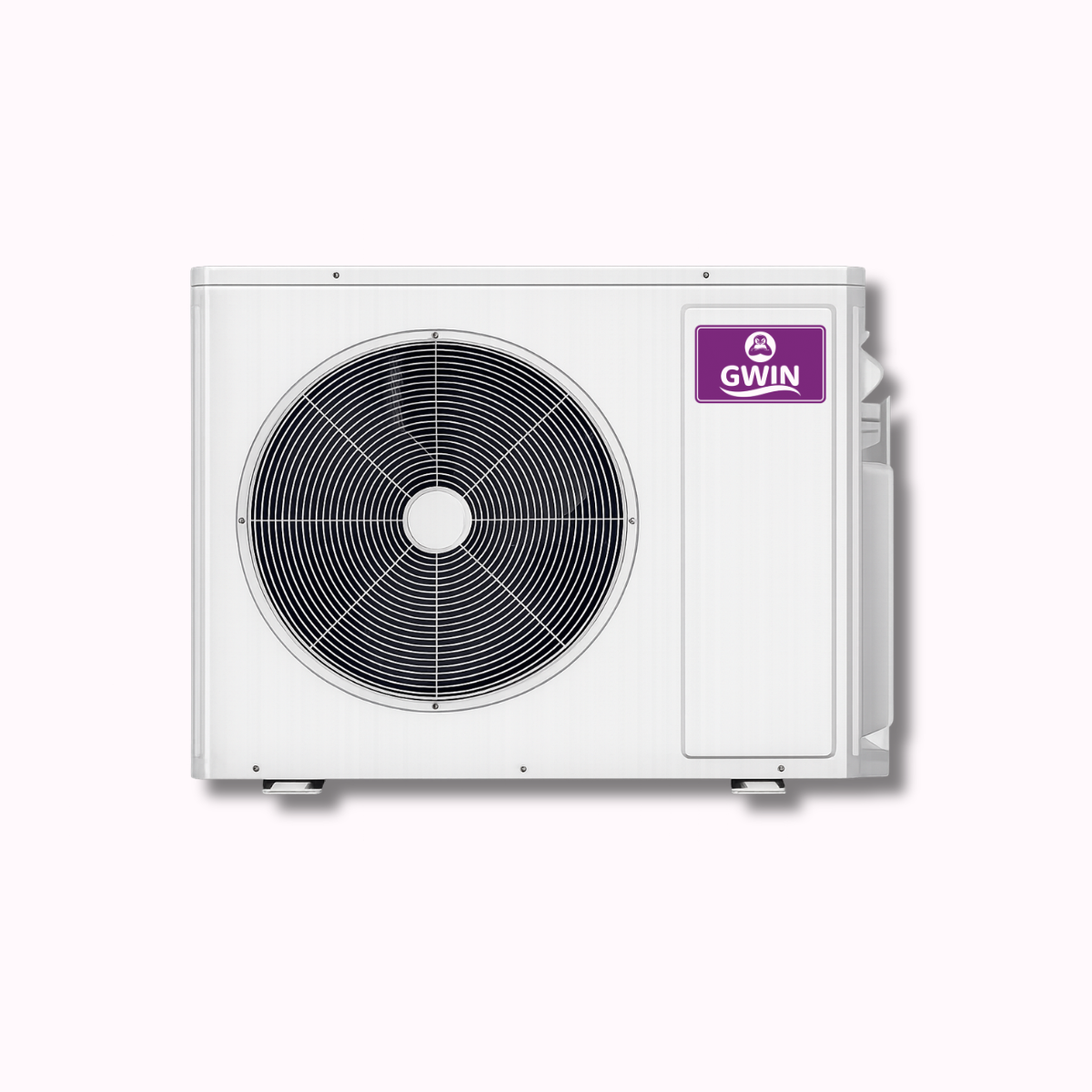

Outdoor Unit Specifications
| Model | KING12HP230V1R32AO |
| Compressor Type | GWIN G20 / Single Cylinder / 1-Stage Inverter |
| Sound Pressure Level | 52 dB(A) |
| Unit Dimensions (W x H x D) | 28-13/16 x 21-7/8 x 12-63/64 in. |
| Package Dimensions (W x H x D) | 31-17/64 x 24-7/32 x 14-51/64 in. |
| Net Weight | 56.2 lbs |
| Gross Weight | 61.7 lbs |
Refrigerant Piping
| Refrigerant Charge | 17.6 oz |
| Additional Charge | 0.2 oz/ft |
| Line Set Size (Liquid - Gas) | 1/4 - 3/8 in. |
| Pre-Charge Length | 25 ft |
| Pipe Length (Min - Max) | 10 - 66 ft |
| Max Pipe Elevation | 40 ft |
Electrical
| Power Supply | 208-230V / 1Ph / 60Hz (Powered by the Outdoor Unit) |
| Voltage Range | 187 - 253 VAC |
| Rated Current - Cooling | 7.02 A |
| Rated Current - Heating | 7.47 A |
| MOCP | 15 A |
| MCA | 12 A |
| Main Power Wire Size | Per Local Code |
| Interconnecting Wire Size | 14 / 4 AWG |
Remote Controller Functions
- Auto Mode
- Auto Fan
- Auto Swing (Horizontal Auto Swing)
- Auto Swing (Vertical Auto Swing)
- Clock on Remote Controller
- Dry Mode
- Dry Anti-Mildew (X-Fan) Mode
- Energy Saving Mode
- Dirty Filter Alert
- I Feel Function
- Lock on Remote Controller
- Quiet Mode
- Room Temperature Display
- Sleep Mode
- Timer Mode
- Turbo Mode
- Display On/Off Control
- Freeze Guard Mode (46°F)
Indoor Unit Dimensions (Unit: inch)
External Dimensions
- W: 32 7/8
- H: 10 53/64
- D: 7 7/8
Package Dimensions
- W: 35 15/64
- H: 13 37/64
- D: 10 43/64
Outdoor Unit Dimensions (Unit: inch)
External Dimensions
- W: 28 13/16
- H: 21 7/8
- D: 12 63/64
Package Dimensions
- W: 31 17/64
- H: 24 7/32
- D: 14 51/64
Minimum Clearance Requirements
Indoor Unit
- Space to the ceiling: at least 3 inches
- Space to the wall: at least 2 inches
- Space to the floor: at least 48 inches
- Space to the obstruction: at least 48 inches
Outdoor Unit
- Space to the obstruction (top): at least 12 inches
- Space to the obstruction (side): at least 6 inches
- Space to the wall: at least 6 inches
- Space to the obstruction (front): at least 24 inches
- Space to the obstruction (other side): at least 6 inches
Note: If the bottom of the unit is free of airflow obstructions, clearance to the wall on the back can be reduced to 3 inches.
The Evolution of DIY Mini Splits
GWIN™ Assisted DIY™
"Most DIY mini splits still leave the hardest parts up to you — pressure testing, vacuuming the system, handling refrigerant, or finding your own tech, and even dealing with bulky pre-charged line sets. GWIN™ HVAC changes all of that with Assisted DIY™. The GWIN Assisted DIY 12,000 BTU 19 SEER2 230V King 13 Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech with Assisted DIY™ is an evolution over DIY alone and makes GWIN™ a complete DIY mini split system that includes free expert tech support, with a tech included, so you never need special tools, never touch refrigerant, never run a vacuum pump, and never perform a pressure test. Our line sets with our easy connect flare-less fittings, allow for a professional operating system, with a professional look. Which also means no coiled mess and no guesswork — just a straightforward self-install ductless system that goes in like a true DIY HVACproject, backed by professionals every step of the way. Whether you're cooling or heating a garage, basement, bedroom, sunroom, home addition, tiny home, or cabin — GWIN™ HVAC is the ultimate DIY ductless solution with our Assisted DIY™ for homeowners who want to do it themselves, but done right." GWIN™ HVAC is the advanced version of DIY mini splits.
